Panasonic FP0R - Input and Output Specifications

3-4

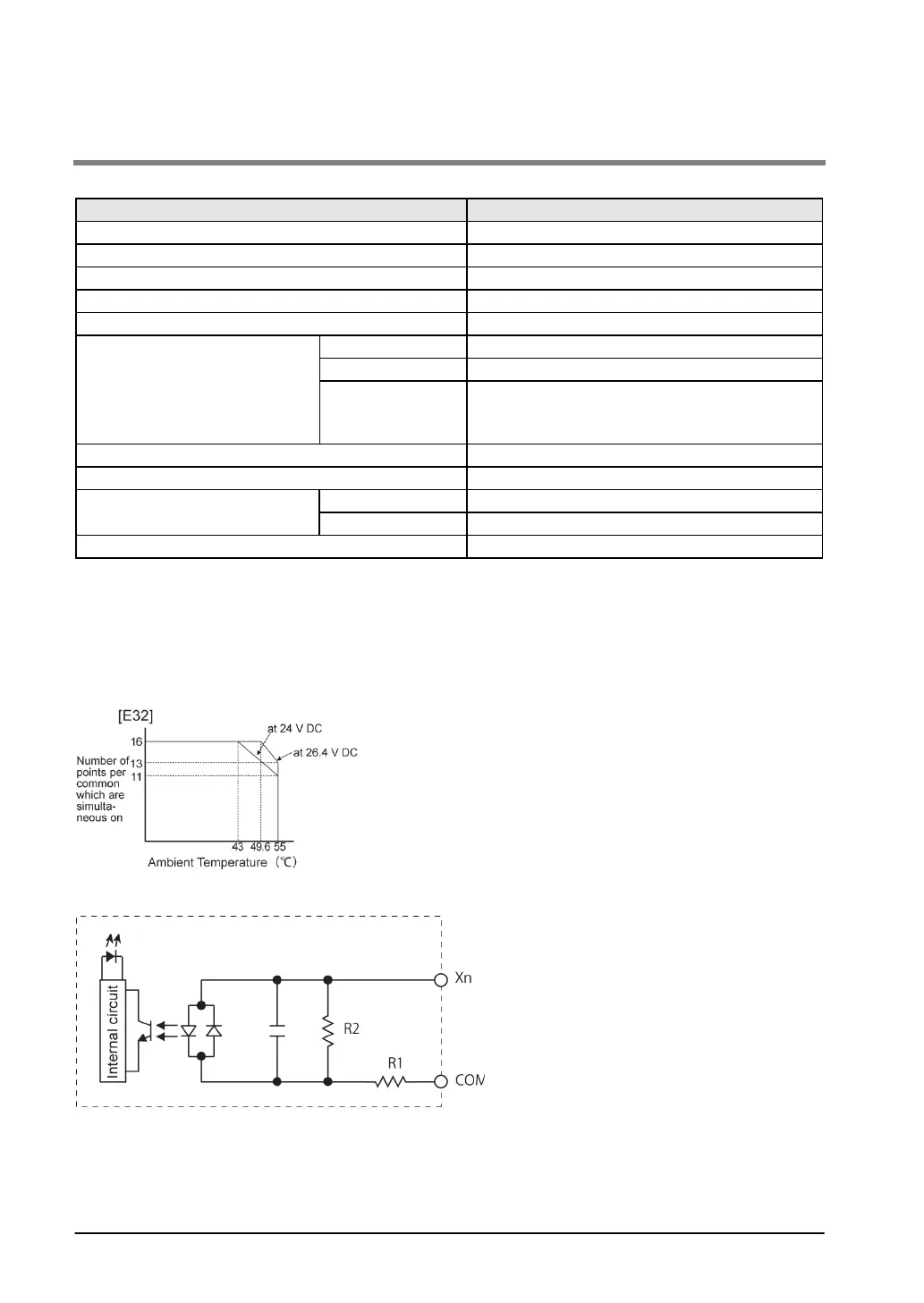

3.3 Input and Output Specifications
(1)Input specifications
Item
Specifications
Insulation method
Optical coupler
Rated input voltage 24 V DC
Rated input current Approx. 4.7 mA (at 24 V DC)
Input impedance
Approx. 5.1 k
Ω
Operating voltage range
21.6 V DC to 26.4 V DC
Input point per common
(Either the positive or negative
of the input power supply can
be connected to common
terminal.)
E8X/E16P/E16T 8 points/common
E32T/E16X 16 points/common
E8R 4 points/common
Min. on voltage/Min. on current 19.2 V DC/3 mA
Max. off voltage/Max. off current
2.4 V DC/1 mA
Response time
OFF
→
ON
2 ms or less
ON → OFF 2 ms or less
Operating mode indicator LED display
Note) The above table shows the specifications of FP0R Expansion Unit. For FP0 Expansion Unit, the
rated input voltage is approx. 4.3 mA, and the input impedance is approx. 5.6 kΩ
.
Limitations on number of simultaneous input on points
Keep the number of input points per common which are simultaneously on within the following range as determined
by the ambient temperature.
Internal circuit diagram
R1=5.1 kΩ, R2=910Ω
