(2) Output specifications
Relay type output specifications
E8RS/E8RM/E8YRS/E16RS/E16RM
Item
Description
Output type 1a relay output
Rated control capacity 2 A 250 V AC, 2 A 30 V DC (Max. 4.5 A or less/common)
Note)
Output points per
common
E8R
4 points/common
E16R, E8YR
8 points/common
Response time
OFF → ON Approx. 10 ms
ON → OFF Approx. 8 ms
Lifetime
Mechanical
Min. 20,000,000 operations
Electrical
Min. 100,000 operations
Surge absorber None
Operating mode indicator LED display
Note) Resistance load

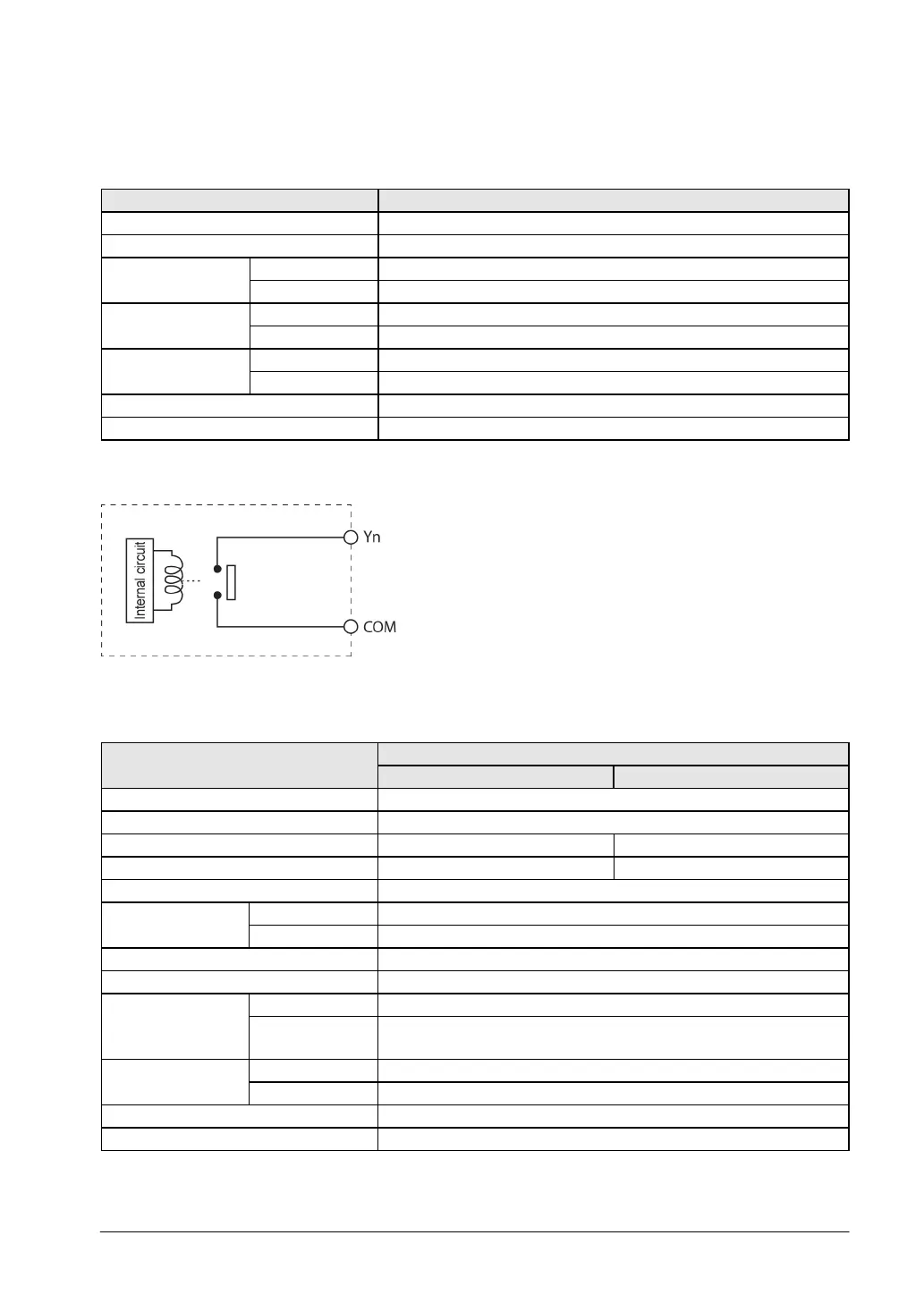

Internal circuit diagram
Transistor type output specifications
(NPN output type: E8YT/E16YT/E16T/E32T)
(PNP output type: E8YP/E16YP/E16P/E32P)
Item
Description
NPN
PNP
Insulation method
Optical coupler
Output type Open collector
Rated load voltage 5 V DC to 24 V DC 24 V DC
Operating load voltage range
4.75 V DC to 26.4 V DC
21.6 V DC to 26.4 V DC
Max. load current
0.3A/point (Max. 1 A per common)
Output points per
common
E16T, E8Y 8 points/common
E32, E16Y 16 points/common
Off state leakage current
100
µ
A or less
On state voltage drop
1.5V or less
External power
supply (for driving
internal circuit)
Voltage 21.6 V DC to 26.4 V DC
Current 3 mA/1 point
Response time
OFF→ON 1 ms or less
ON
→
OFF
1 ms or less
Surge absorber
Zener diode
Operating mode indicator LED display
Note) The above table shows the specifications of FP0R expansion unit. For FP0 Expansion Unit, the
maximum load current is 0.1 A.
