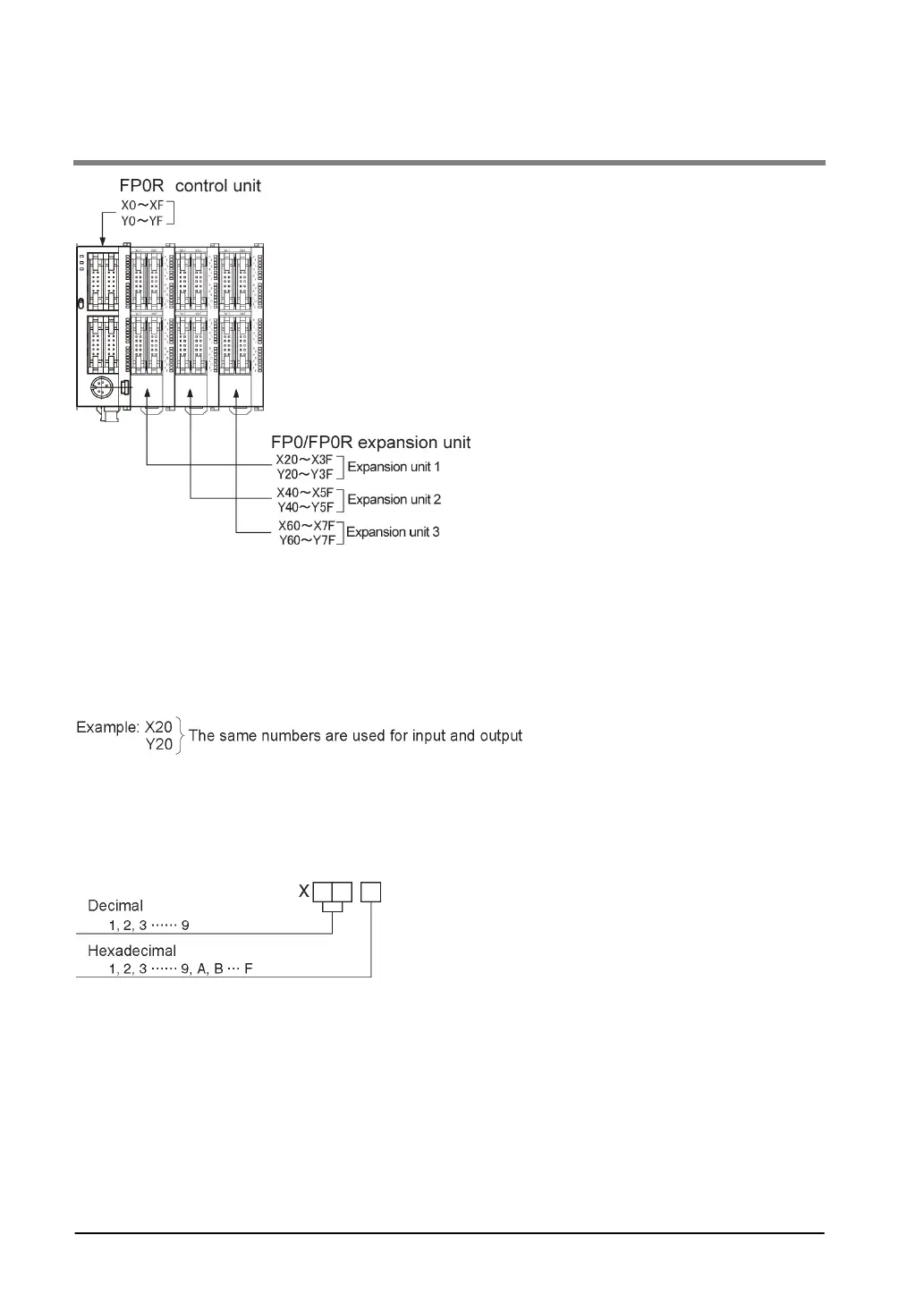

4.1 I/O Allocation
Note) The usable I/O numbers are different depending on the units.
Regarding I/O number
Specifying X and Y numbers
On the FP0R, the same numbers are used for input and output.
Expression of numbers for input/output relays
Since input relay "X" and output relay "Y" are handled in units of 16 points, they are expressed as a
combination of decimal and hexadecimal numbers as shown below.
