Panasonic FP0R - FP0 R Pulse Output Control Flag Area; Pulse Output Control Flag Monitor Area

8-26

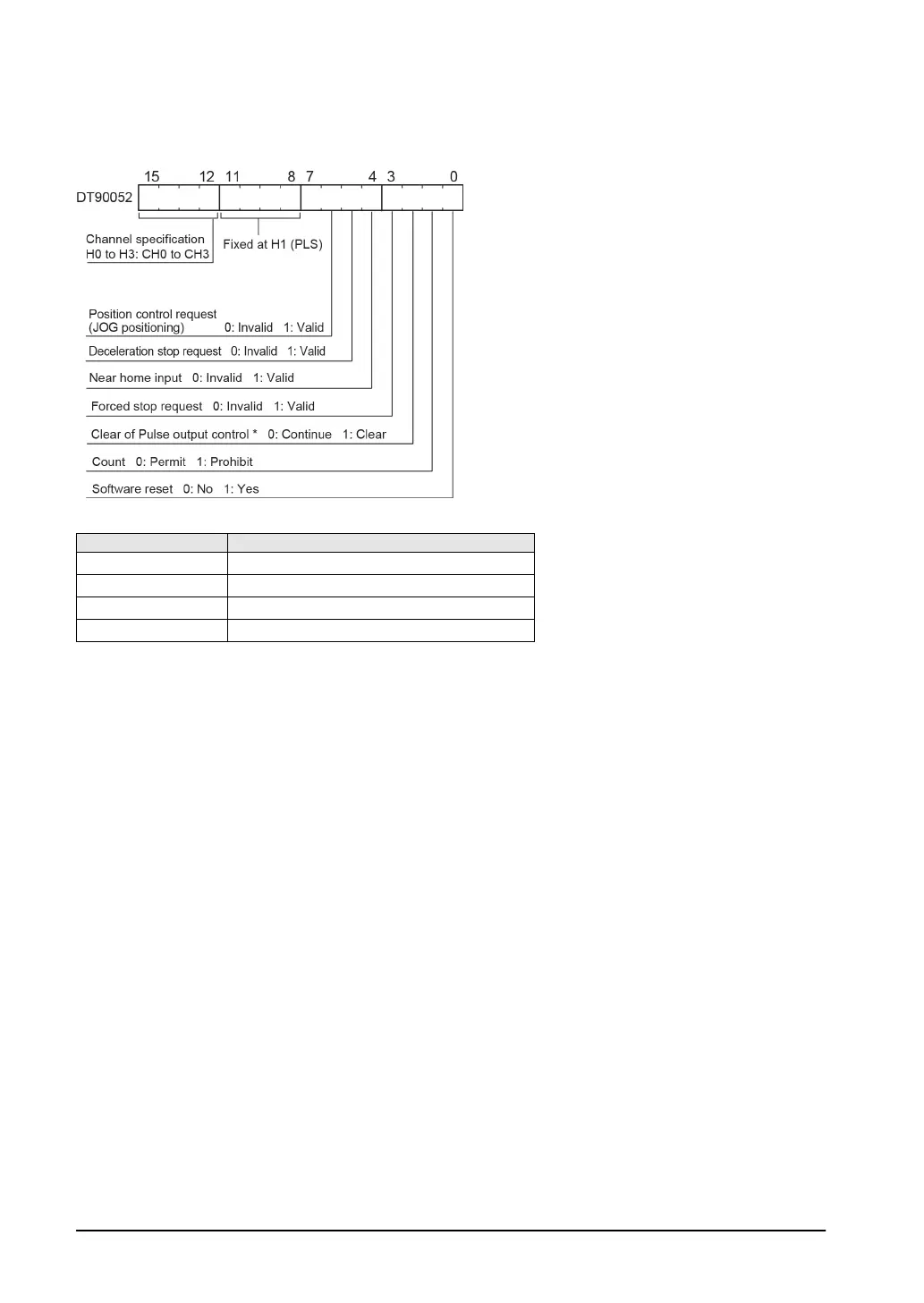

FP0R Pulse output control flag area
• The area DT90052 for writing channels
and control codes is allocated as shown in
the left figure.
• Control codes written with an F0 (MV)
instruction are stored by channel in special
data register DT90380 to DT90383.
Pulse output control flag monitor area
Channel No.
Control code monitor area
CH0
DT90380
CH1 DT90381
CH2
DT90382
CH3 DT90383
