Panasonic FP0R - Positioning Operations with a Double Speed Inverter

8-18

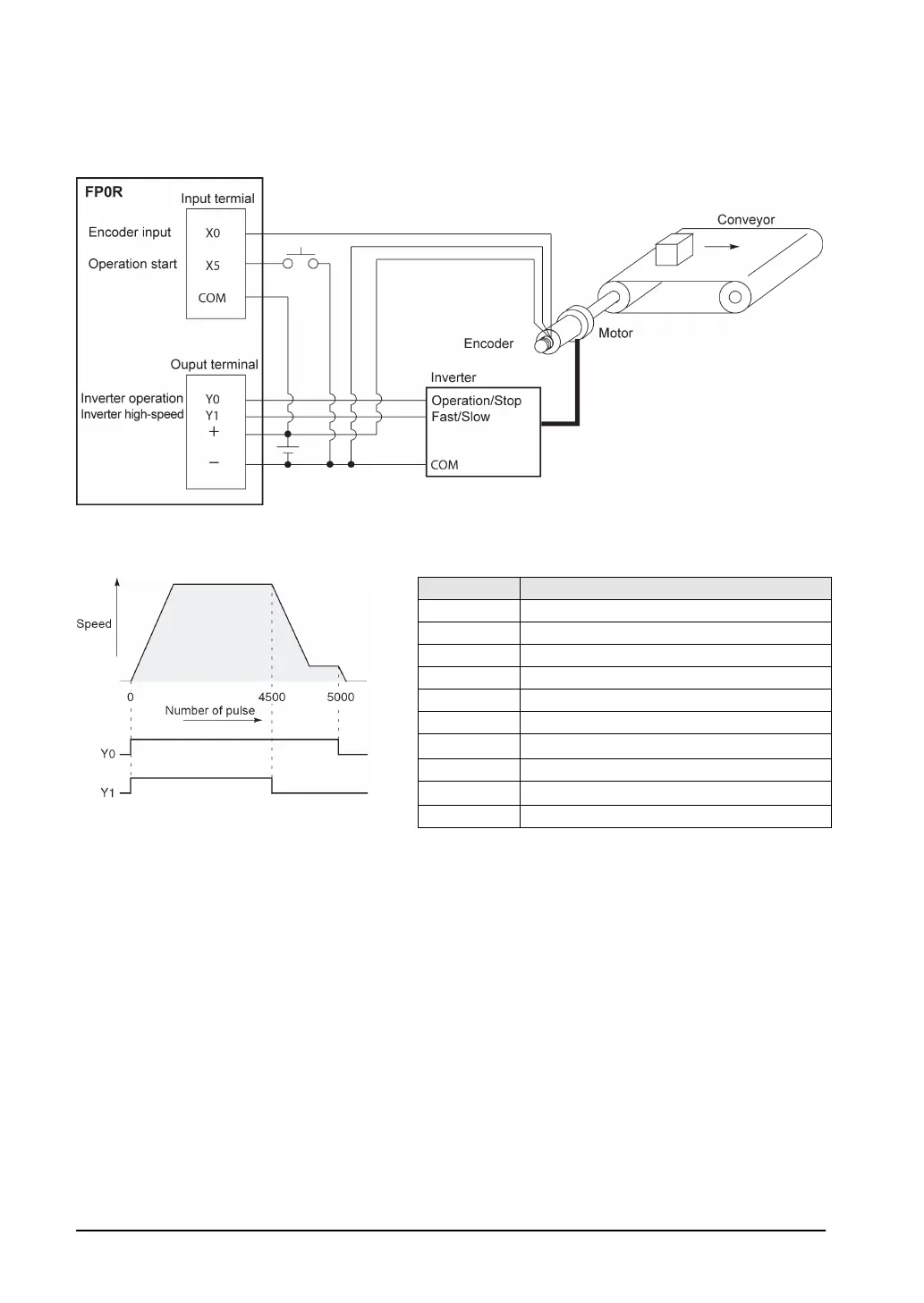

Positioning operations with a double speed inverter
Wiring example
Operation chart
I/O allocation
I/O No.
Description
X0 Encoder input
X5
Operation start signal
Y0
Inverter operation signal
Y1
Inverter high-speed signal
R100
Positioning operation running
R101
Positioning operation start
R102 Arrival at deceleration point
R103
Positioning done pulse
R900C Comparison instruction <flag>
R9110
High-speed counter CH0 control flag
