3.1 Expansion Method
The FP0/FP0R expansion units (expansion I/O unit, high-performance unit) are connected to the right
side of the control Unit.
Unit expansion is done using the right-side connector for FP0/FP0R expansion and the expansion hooks
on the side of the unit.

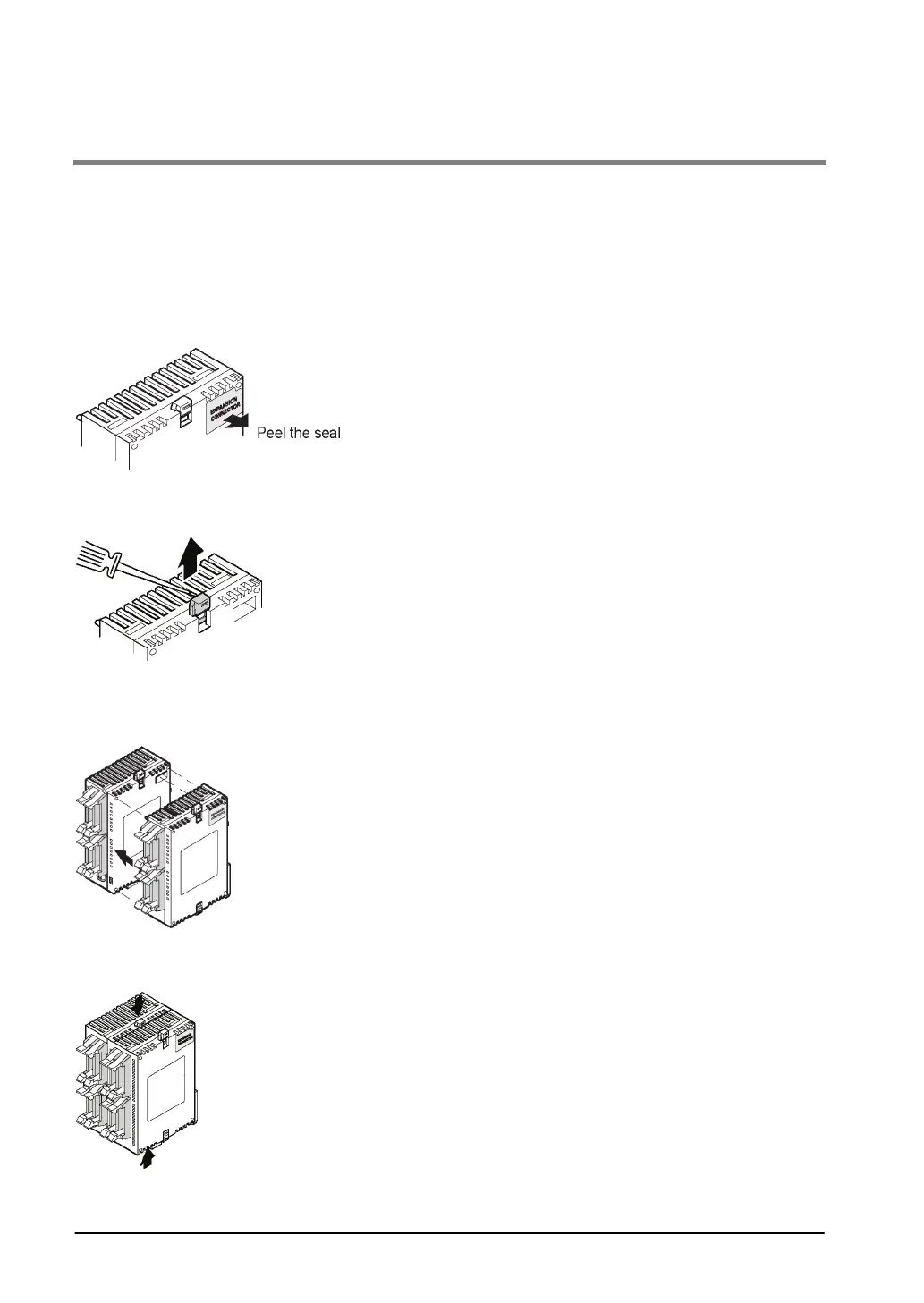

(1) Peel the seal on the right side of the unit to expose the internal right-side connector for the
FP0/FP0R expansion.
(2) Using a screwdriver or similar tool, pull out the top and bottom expansion hooks.
(3) Align the pins and holes in the four corners of the control unit and expansion unit, and insert
the pins into the holes so that there is no gap between the units.
(4) Press down the expansion hooks raised in Step (2) to secure the unit.
