5-12

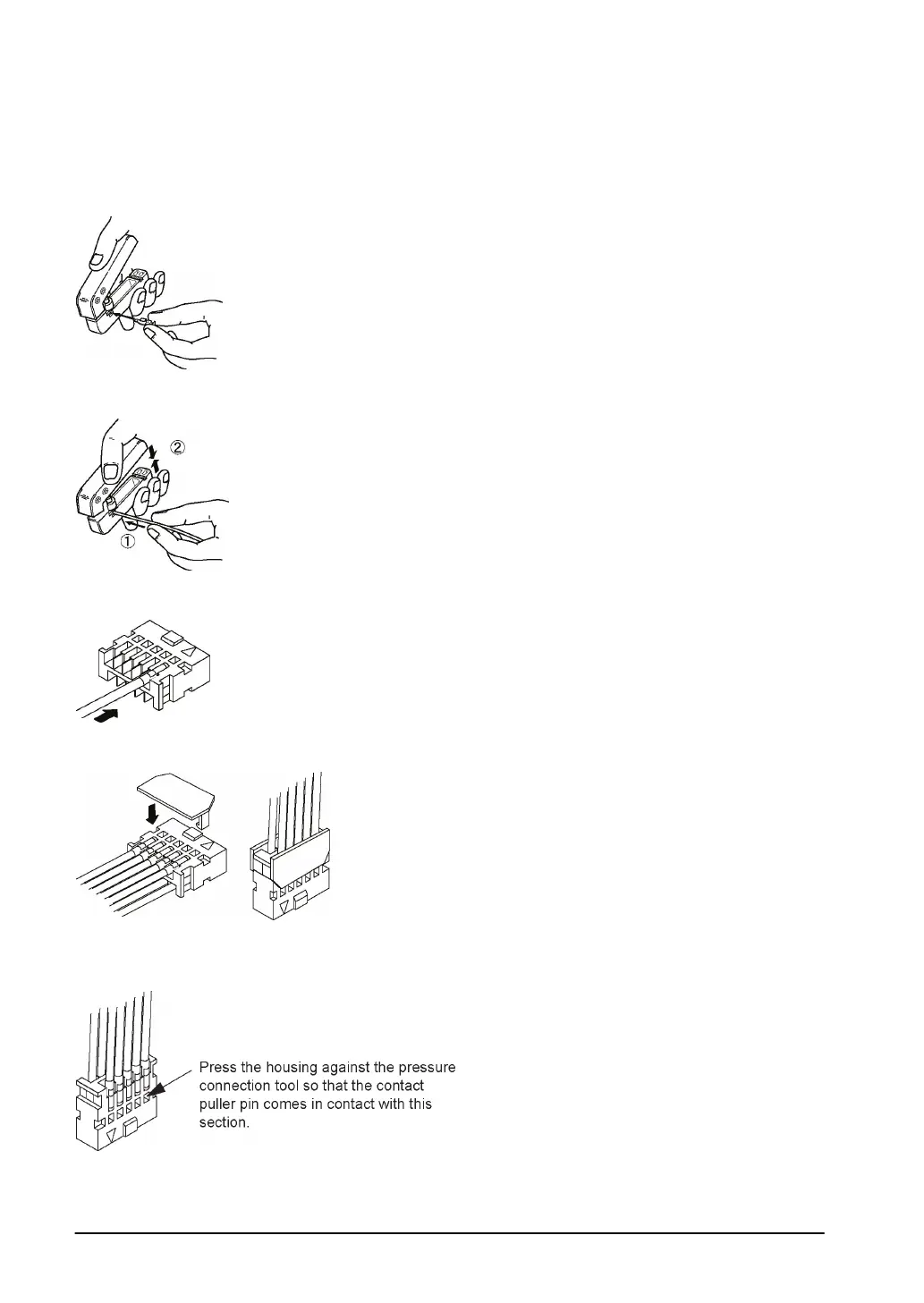

Wiring method
The wire end can be directly crimped without removing the wire's insulation, saving labor.
(1) Bend the welder (contact) back from the carrier, and set it in the pressure connection tool.
(2) Insert the wire without removing its insulation until it stops, and lightly grip the tool.
(3) After press-fitting the wire, insert it into the housing.
(4) When all wires has been inserted, fit the semi-cover into place.
If there is a wiring mistake or the cable is incorrectly pressure-connected, the contact puller pin provided
with the fitting can be used to remove the contact.
