14-3

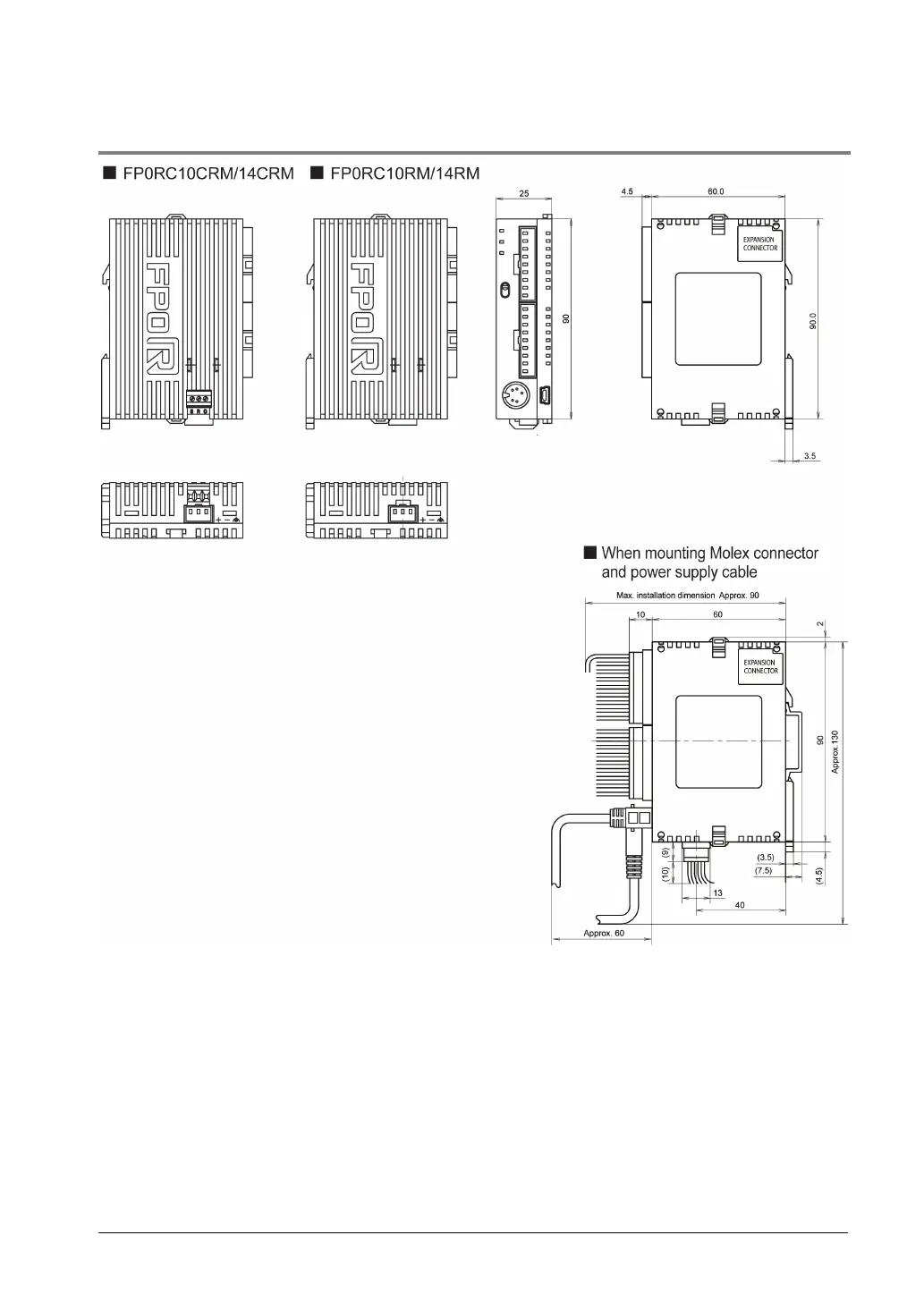

14.1.2 C10/C14 Control Unit (Molex Connector)
(Unit: mm)
Note) As for the expansion unit, refer to the dimensions only.
Target expansion units: E8RM,E16RM
