Panasonic FP0R - Transistor Output Specifications; Limitations on Number of Simultaneous Output on Points

2-5

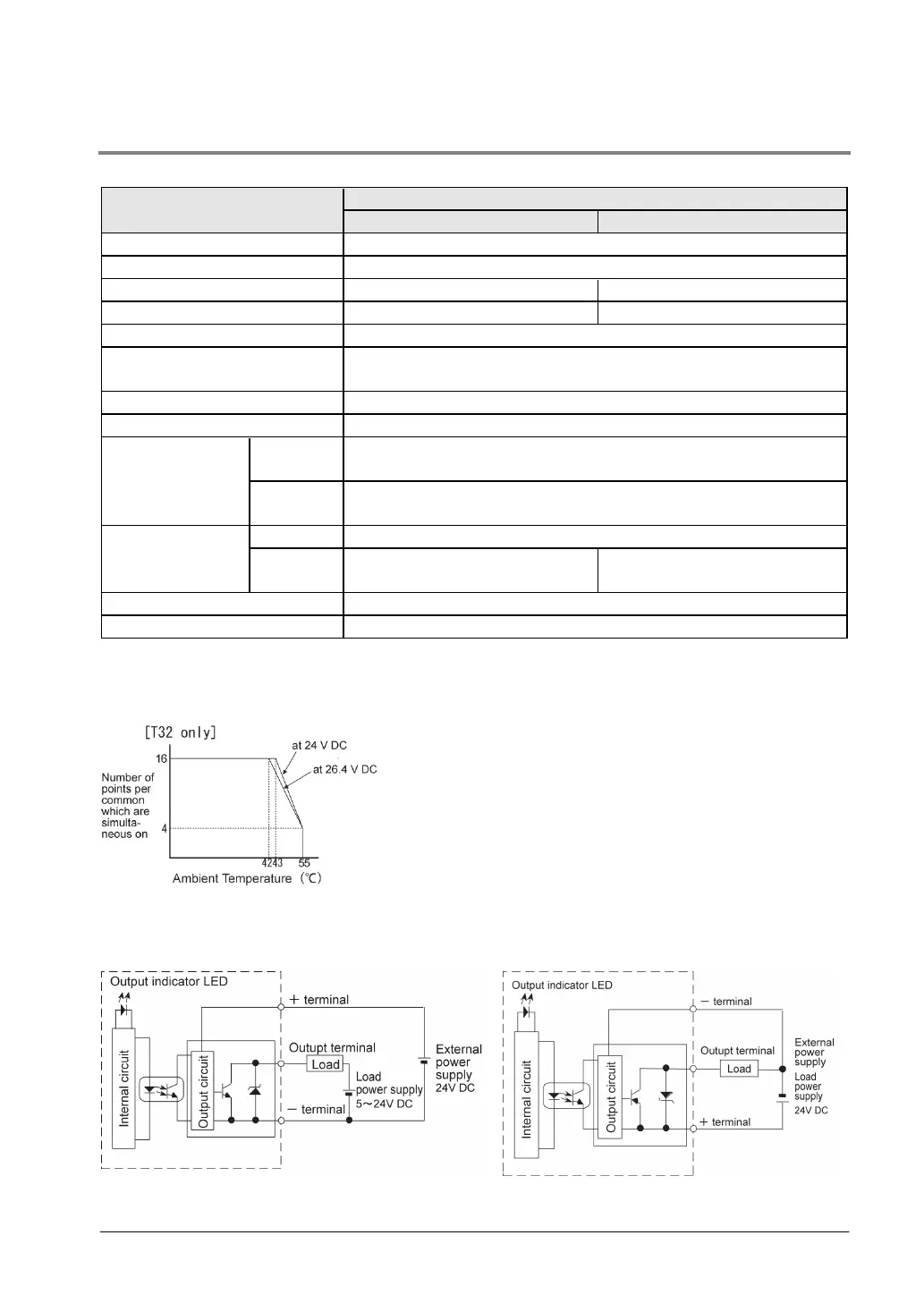

2.2.2 Output Specifications
Transistor output specifications
Item
Description
NPN
PNP
Insulation method Optical coupler
Output type
Open collector
Rated load voltage
5 V DC to 24 V DC
24 V DC
Operating load voltage range 4.75 V DC to 26.4 V DC 21.6 V DC to 26.4 V DC
Max. load current 0.2A
Output points per common
For C16: 8 points/common
For C32, T32, F32: 16 points/common
Off state leakage current
1
µ
A or less
On state voltage drop 0.2 V DC or less
Response time
OFF→ON 20 µs or less (Load current: 5 mA or more)
0.1 ms or less (Load current: 0.5 mA or more)
ON→OFF 40 µs or less (Load current: 5 mA or more)
0.2 ms or less (Load current: 0.5 mA or more)
External power
supply
(+ and - terminals)
Voltage
21.6V DC to 26.4V DC
Current C16: 30 mA or less
C32, T32, F32: 60 mA or less
C16:35 mA or less
C32, T32, F32: 70 mA or less
Surge absorber Zener diode
Operating mode indicator
LED display
Limitations on number of simultaneous output on points
Keep the number of output points per common which are simultaneously on within the following range as
determined by the ambient temperature.
Circuit diagram
[NPN] [PNP]
