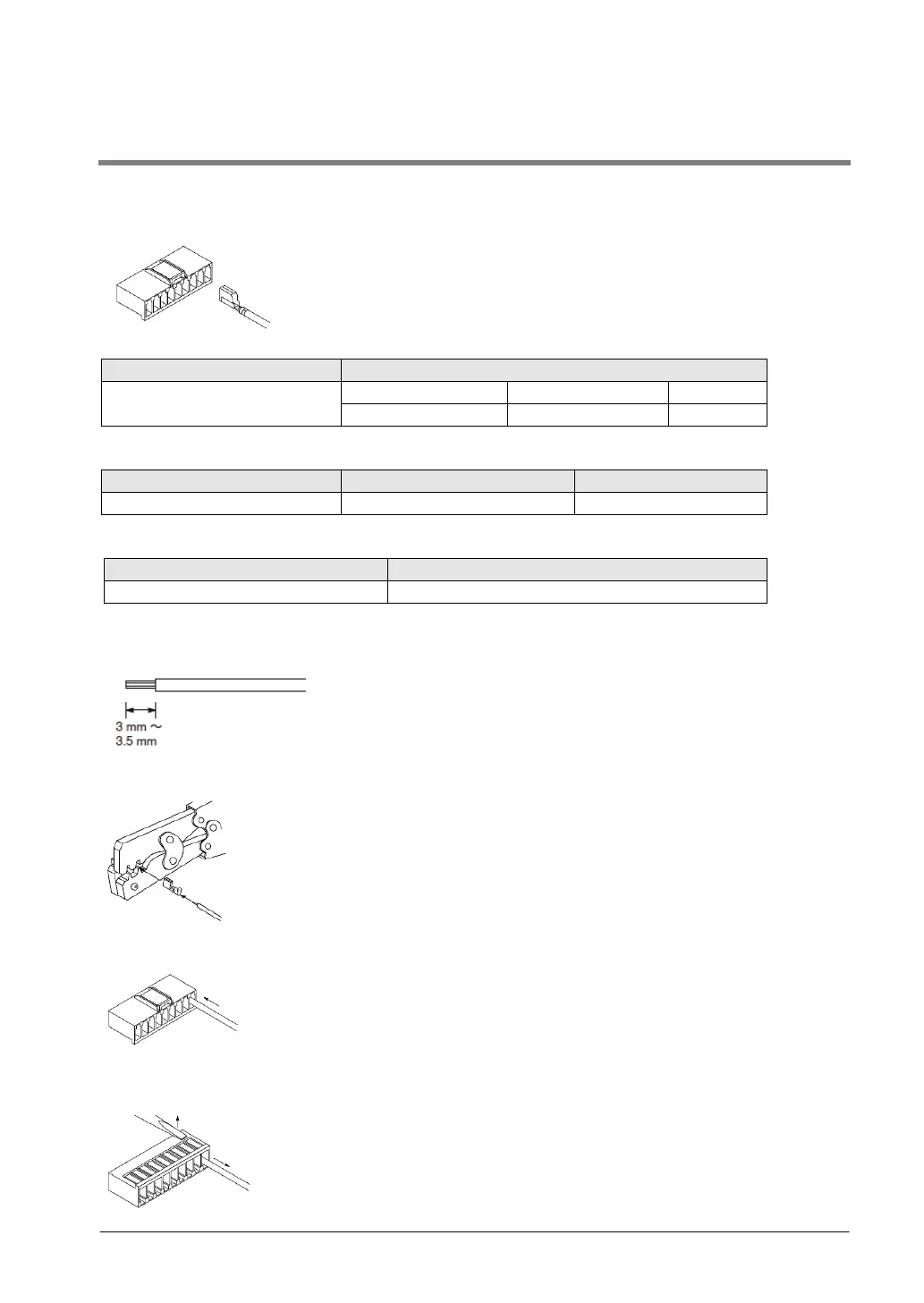

5.6 Wiring of Molex Connector Type
Supplied connector and suitable wires
The connector listed below is supplied with the unit. Use the suitable wires given below. Also, use the
required pressure connection tools for connecting the wires.
Supplied connector
Manufacturer
Molex Japan model No.
Japan Molex Co., Ltd.
Housing
51067-0900
2 pcs
Contact 50217-8100 20 pcs
Suitable wires (Twisted wire)
Size
Cross-sectional area
Insulation thickness
AWG#24~18
0.2mm
2
~0.75mm
2
Dia. 1.4 to dia. 3.0
Pressure connection tool
Manufacturer
Molex Japan model No.
Japan Molex Co., Ltd. 57189-5000
Wiring method
(1) Remove a potion of the wire's insulation.
(2) Place the contact in the crimping tool, place the wire in the contact and lightly squeeze the tool
(3) Insert the crimped wire into the housing until it contacts the back side.
(4) When removing the wire, use a flat-head screwdriver, or other similar tool, to pull up the hold-down
pin of the housing and then pull out the wire.
