7-3

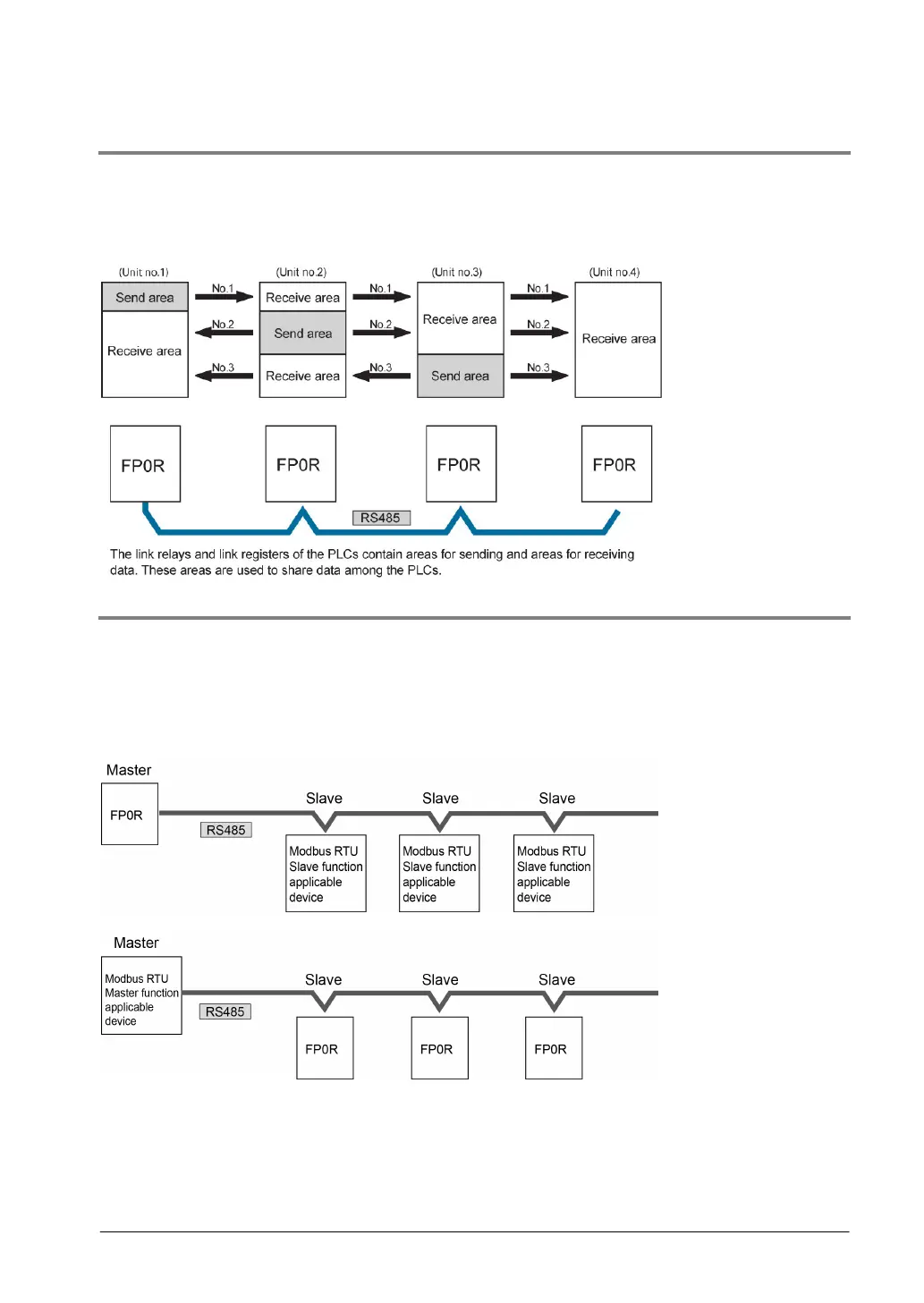

7.1.4 PC(PLC) Link
Using a commercial R232C/RS485 converter enables to configure a PC(PLC) link (MEWNET-W0) with
the FP0R.
- Exclusive internal relays "link relays (L)" and data registers "link registers (LD)" are shared between the
connected PLCs.
7.1.5 MODBUS RTU
Function overview
- The MODBUS RTU protocol enables the communication between the FP0R and other devices
(including our FP-e, Programmable display GT series and KT temperature control unit).
- Communication is performed when the master unit sends instructions (command messages) to slave
units and the slave unit returns responses (response messages) according to the instructions.
Master function
Slave function
