Panasonic FP0R - Program

8-19

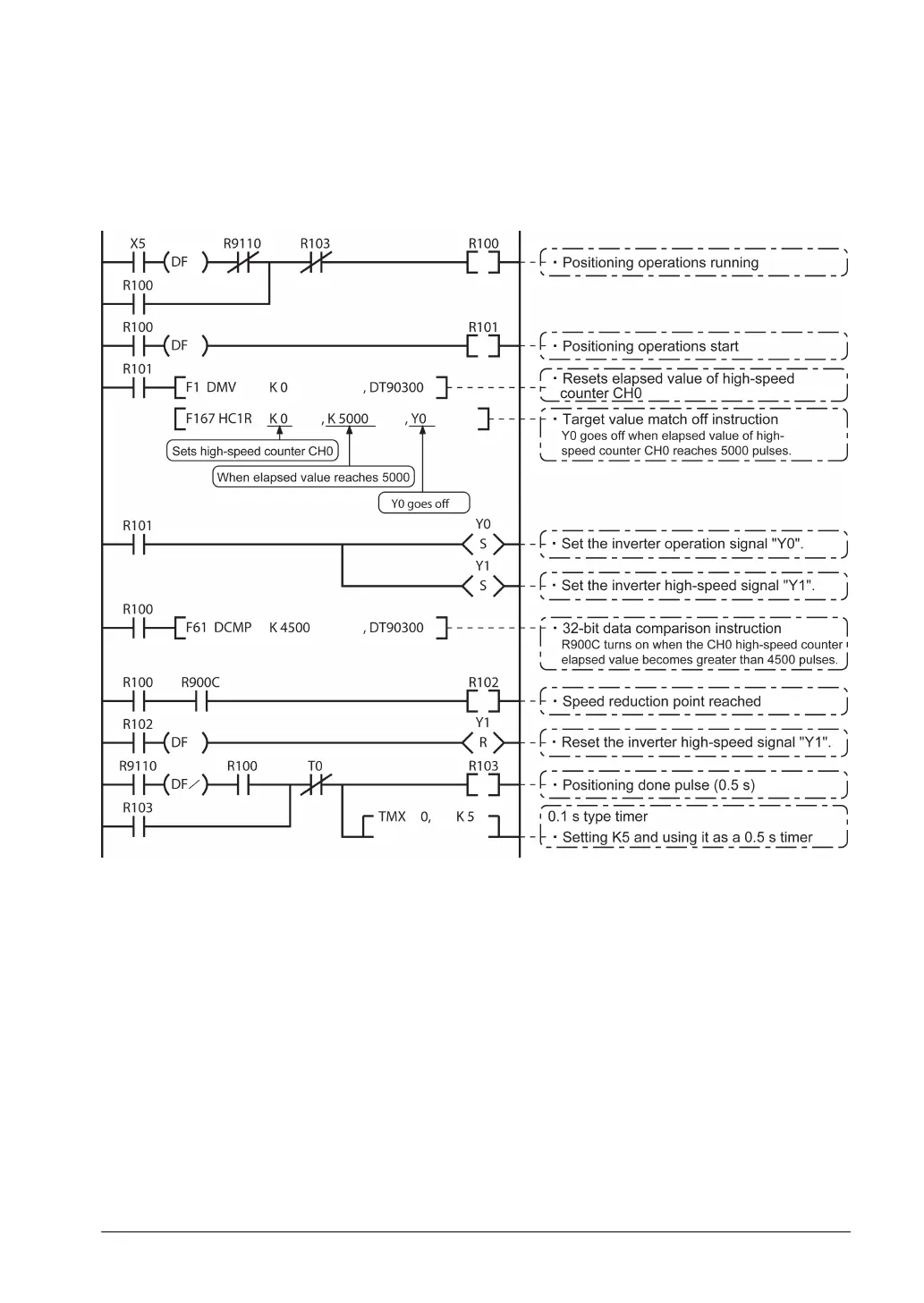

Program
When X5 is turned on, Y0 and Y1 turn on and the conveyor begins moving. When the elapsed value
(DT90300 and DT90301) reaches K4500, Y1 turns off and the conveyor begins decelerating. When the
elapsed value reaches K5000, Y0 turns off and the conveyor stops.
