5-9
Precaution
w
hen us
ing LED
-
e
quipped limit
switch

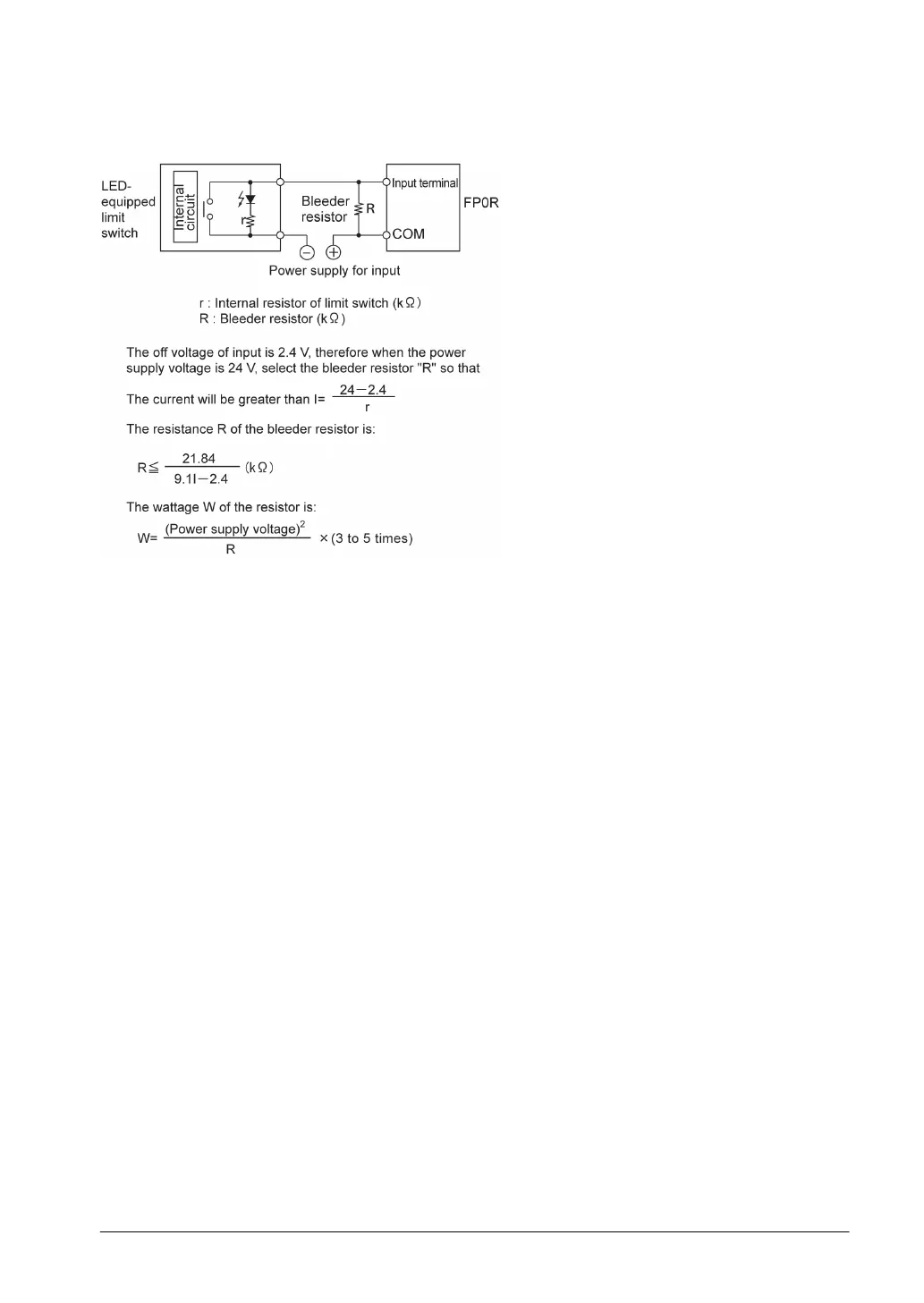

If the input of P
LC does not turn off becaus
e of
leakage curren
t from the LED
-
equipp
ed limit
switch,
the use of a bleeder res
istor is
recommended,
as shown on the left.
