Relay output specifications (C10/C14)
Item
Description
Output type 1a output
Rated control capacity 2 A 250 V AC, 2 A 30 V DC (4.5 A or less/common)
Note)
Output points per common
C10:2 points/common+1 point/common+1 point/common
C14:4 points/common+1 point/common+1 point/common
Response
time
OFF
→
ON
Approx. 10 ms
ON → OFF Approx. 8 ms
Lifetime
Mechanical Min. 20,000,000 operations (Switching rate: 180 times/min.)
Electrical Min. 100,000 operations (Switching rate: 20 times/min. at rated control
capacity)
Surge absorber
None
Operating mode indicator LED display
Note) Resistance load

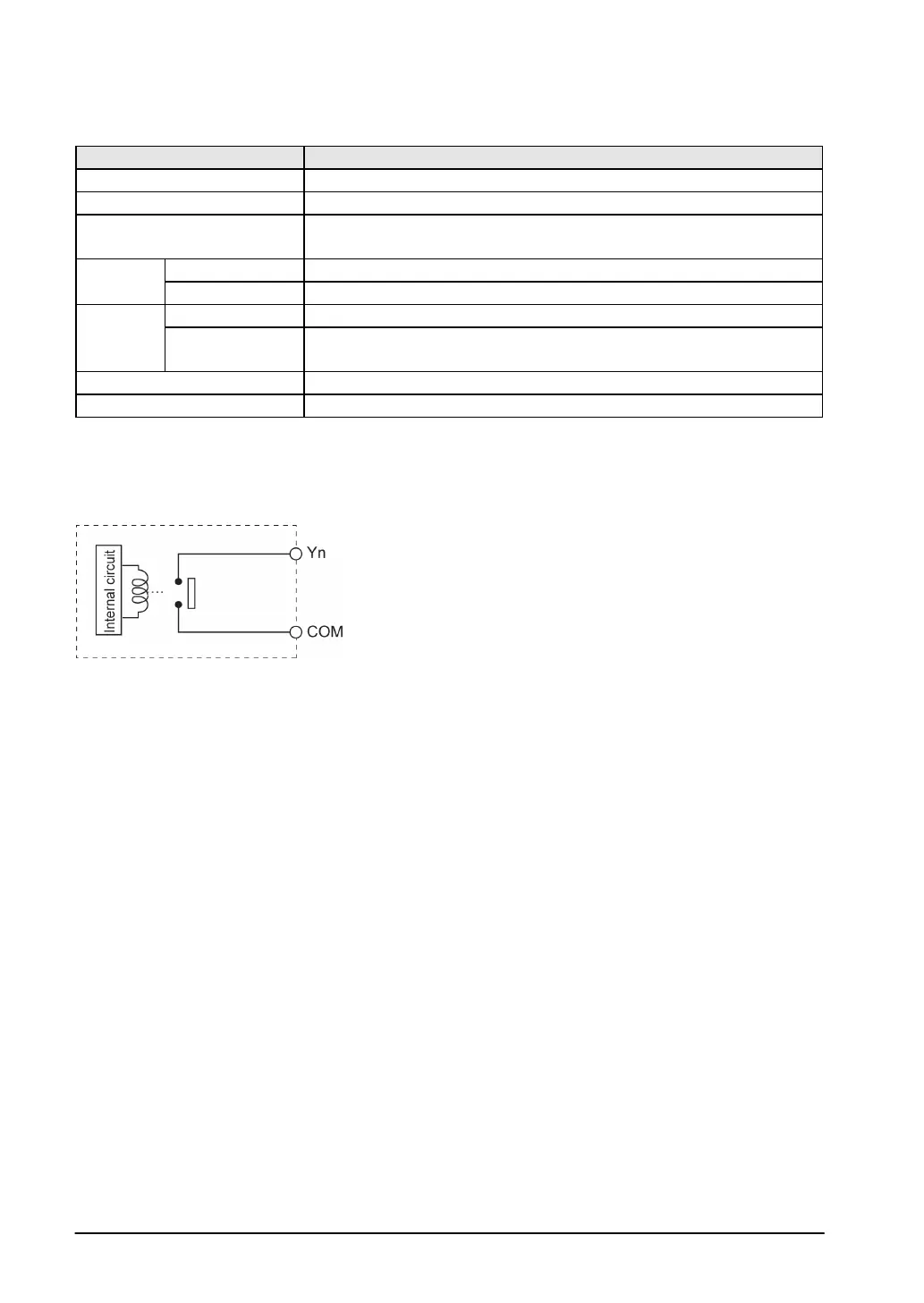

Circuit diagram
