Panasonic FP0R - Page 33

2-9
Model
No.

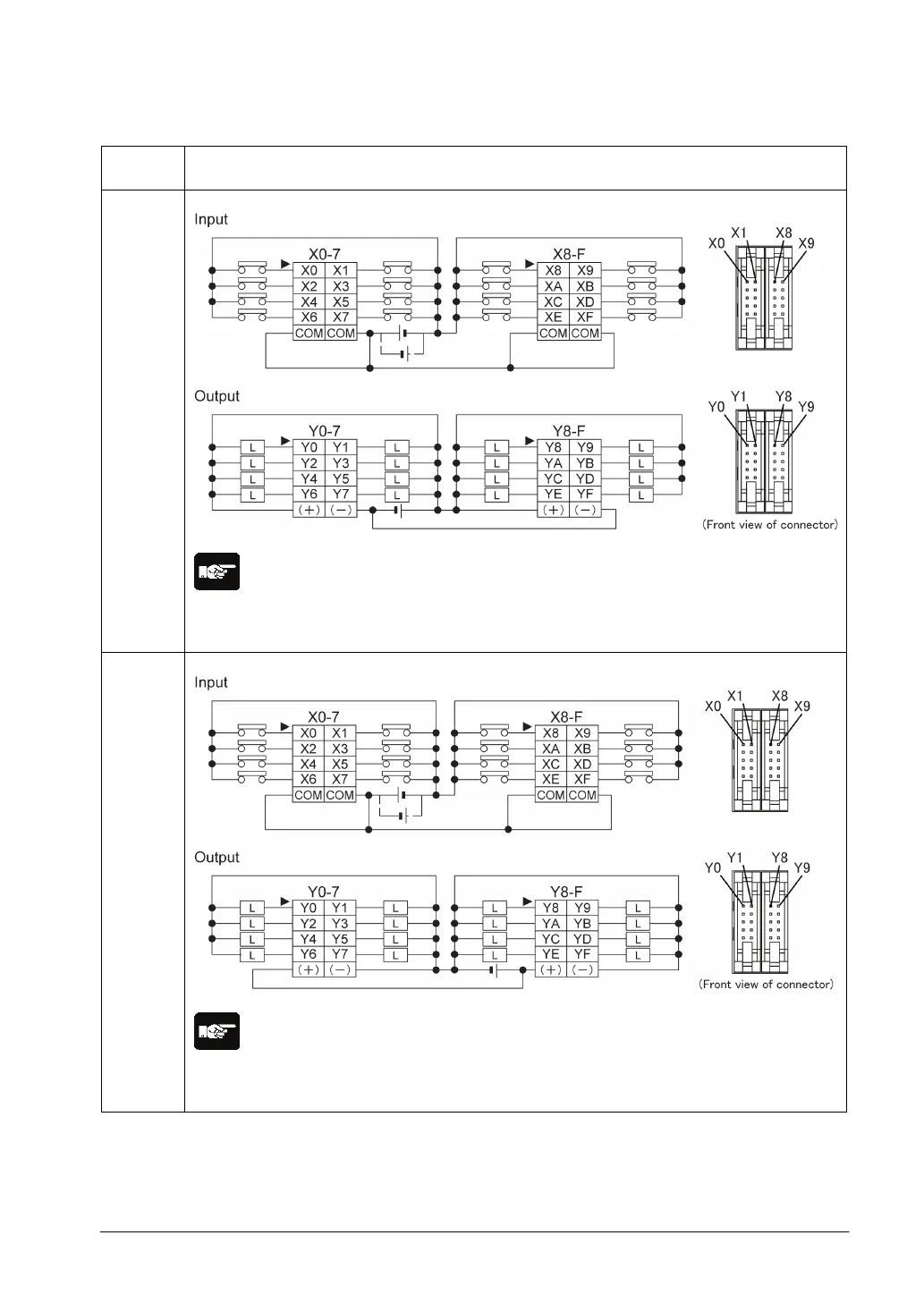

Terminal layout diagrams
C32T
C32CT
C32MT
T32CT
T32MT
F32CT
F32MT
Note: Four COM terminals of the input circuit are connected internally.
Two (+) terminals of the output circuit are connected internally.
Two (-) terminals of the output circuit are connected internally.
C32P
C32CP
C32MP
T32CP
T32MP
F32CP
F32MP
Note: Four COM terminals of the input circuit are connected internally.
Two (+) terminals of the output circuit are connected internally.
Two (-) terminals of the output circuit are connected internally.
