Storage Slot
In the Select Components area of the pane, selectable Storage Partitions are displayed. Clicking the
expand/collapse button results in an expansion that shows the Storage slots.

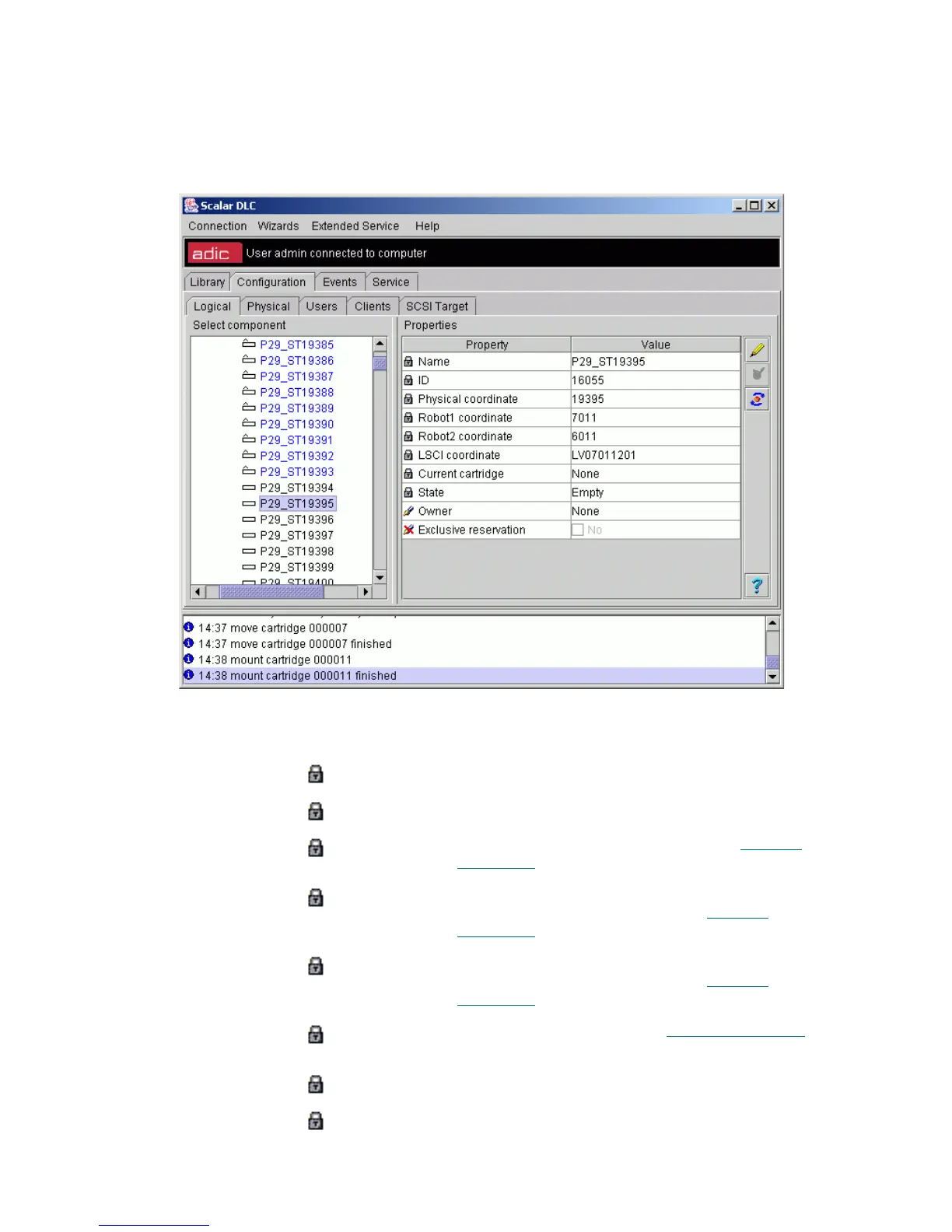

Figure 72 Storage Slot
Field/Button Icon Operation Description
Name Supplied Slot name.
ID Supplied Slot identification number.
Physical coordinate Supplied Slot physical (SCSI) coordinate. Refer to Element
Addressing on page 244.
Robot1 coordinate Supplied The slot coordinate in Robot1 (None means the slot is
assigned to another robot). Refer to Element
Addressing on page 244
Robor2 coordinate Supplied The slot coordinate in Robot2 (None means the slot is
assigned to another robot). Refer to Element
Addressing on page 244
LSCI coordinate Supplied Slot LCSI coordinate. Refer to Element Addressing
on
page 244.
Current cartridge Supplied A contained cartridge, if any.
State Supplied Slot state (empty/occupied)
