126 Configuration Tab
Drives
In the Select Components area of the pane, selectable Drives appear.

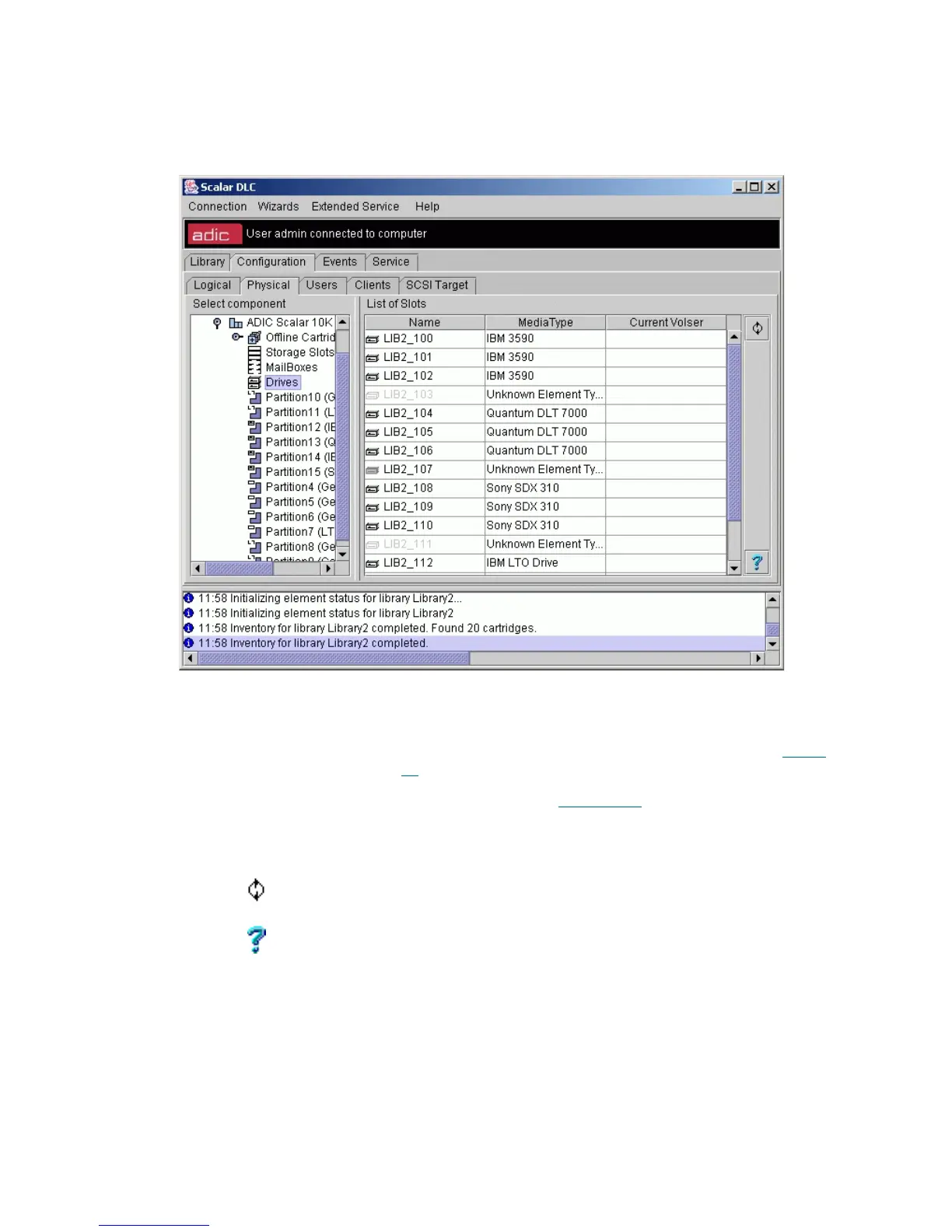

Figure 93 Physical Drives
Field/Button Icon Operation Description
Name Supplied The slot name. The icon also shows the slot state. See Table
16 on page 67.
Media Type Supplied The slot type. Refer to Drive Type
s on page 249.
Current volser Supplied If the slot is occupied, the contained cartridge is shown. For
the optical disk, two cartridges are shown, active side first.
Refresh Click Force refresh the cartridge list and apply changes in the event
of any difference.
Help Click Open online help for the current pane.
