GUI Tabs
This topic describes the main area of the Scalar DLC Management GUI screen, the GUI Tabs. All extended
configuration and management is executed from this area.
The detailed structure is described in Tabs Structure
on page 68.

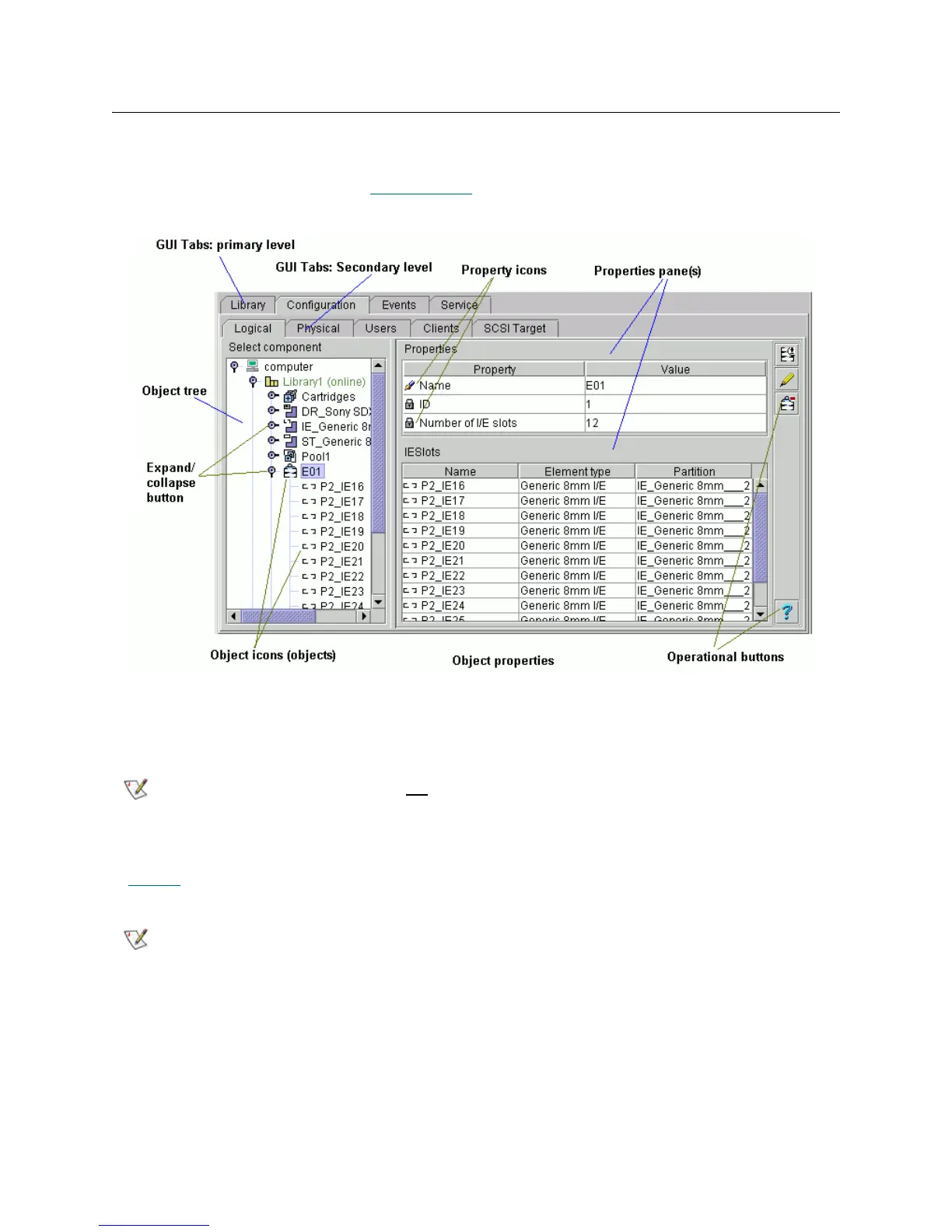

Figure 46 GUI Tabs: Working Areas
While using the GUI Tabs, clicking the expand/collapse button on the left of the branch in the Select
Components area of the pane expands or collapses that branch of the tree. Selecting the actual branch
displays the associated properties.
The top of the tree always indicates the Scalar DLC controller. As each branch of the tree is expanded and
selected, the properties for that branch of the tree appear. An explanation of the tree objects is described
in Table 9
on page 62.
Note
Expanding the tree does not select branches from the tree.
Note
Some elements are present on all the panes of the Scalar DLC Management GUI, while
other are not.
