Scalar DLC Reference Guide 57
View Log

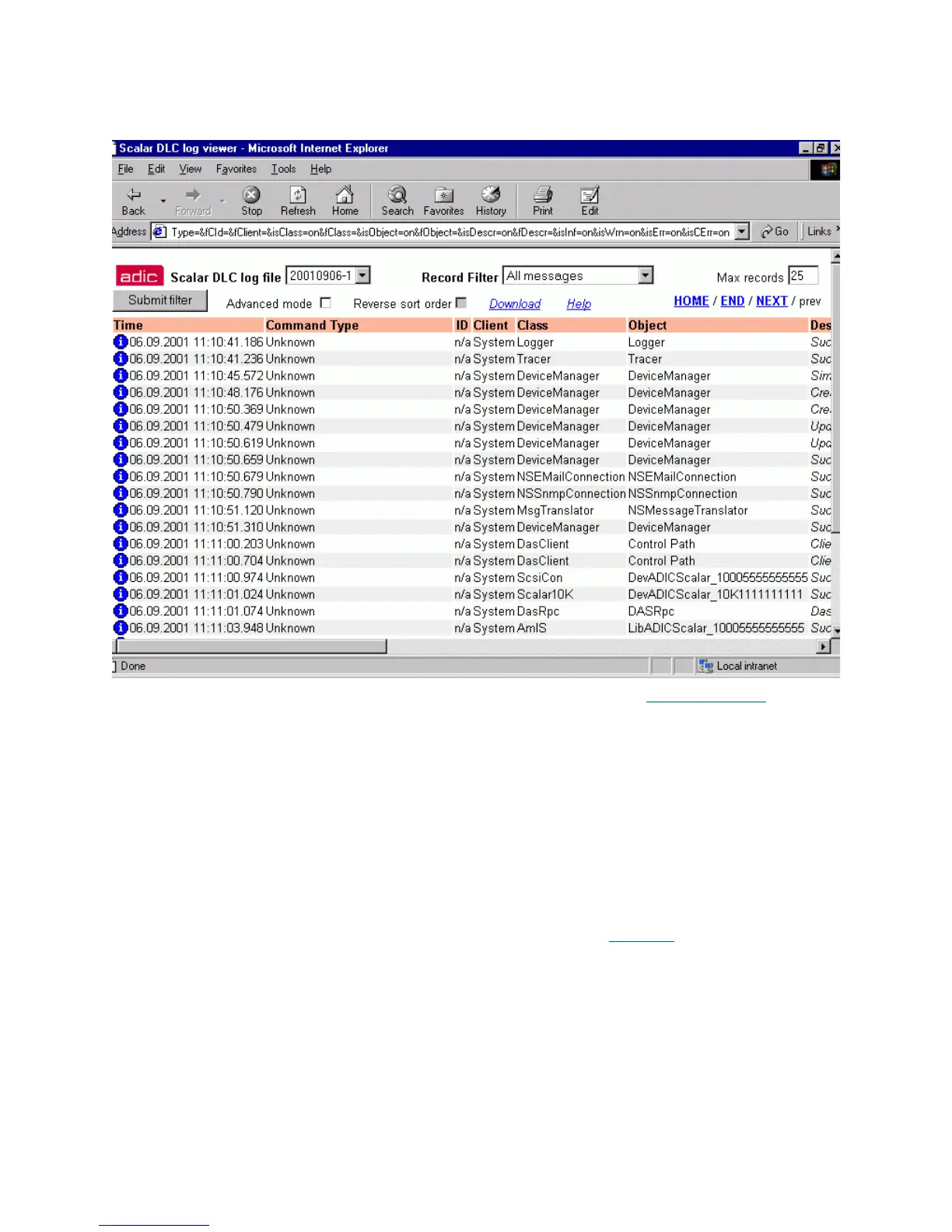

Figure 42 View Log: standard mode
Selecting the View Log opens the online log viewer window. Refer also to the L
og Viewer Utility on page
221.
Name Operation Description
Scalar DLC log file Select The log file to view can be selected (current session by
default).
Record Filter Select The filter of records can be specified.
Max records Enter The maximum number of records to show can be specified.
Advanced mode Check Pressing the Submit filter button shows the View Log
advanced mode window. See Figure 43
on page 58.
Reversed sort order Check Not supported in current version.
Download Click Downloads the current log file.
Help Click Open Log help screen.
Home Click Go to the first record page.
End Click Go to the last record page.
Next Click Go to the next record page.
