Scalar DLC Reference Guide 153
I/E Slots

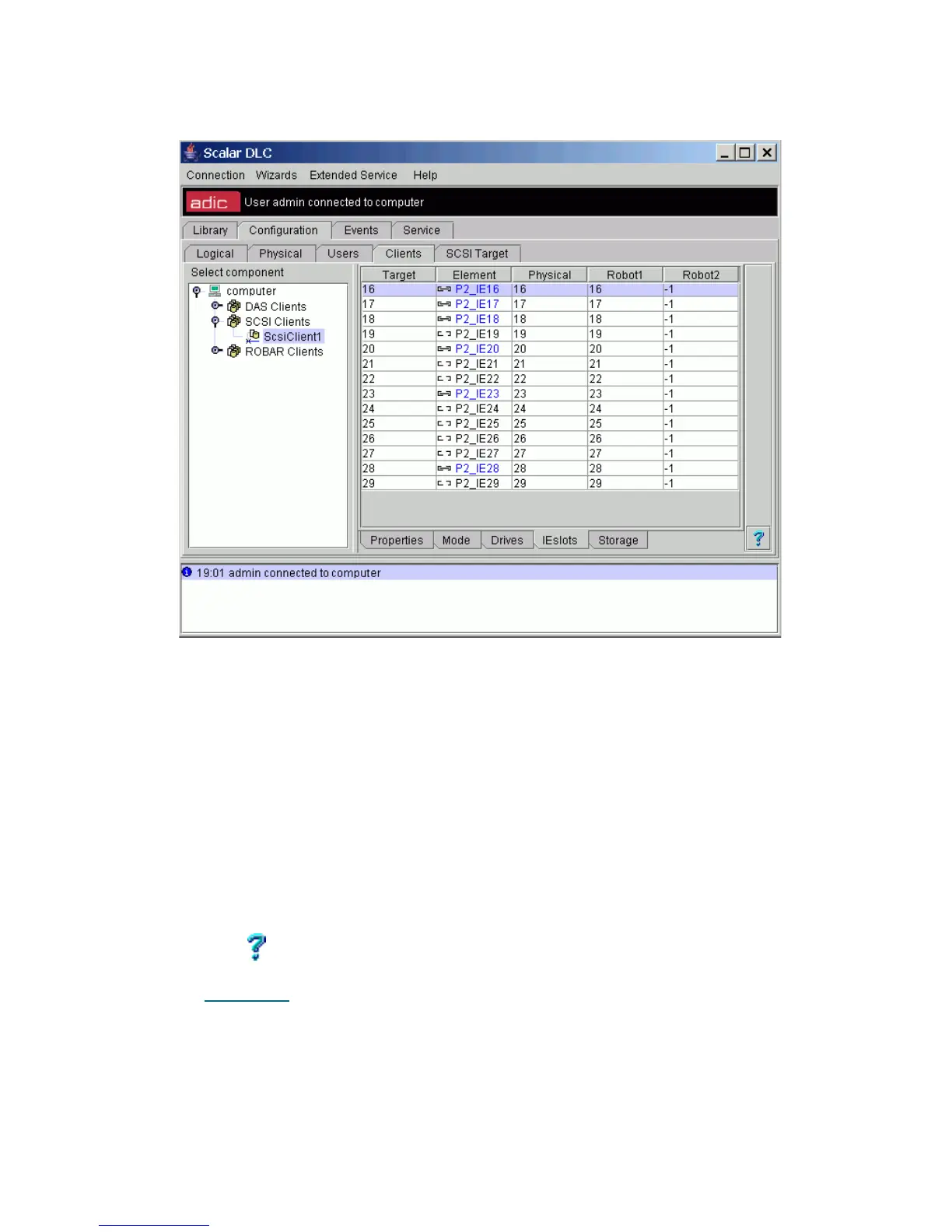

Figure 110 SCSI Client I/E Slots
The SCSI Client I/E slots pane indicates the I/E slots coordinates as the SCSI client will see them.
Refer also to Mailbox Slot
on page 102.
Field/Button Icon Operation Description
Target Supplied The element coordinate as seen to the client.
Element Supplied The element, as shown in the Management GUI.
Physical Supplied The element physical coordinate.
Robot1 Supplied The Robot1 element coordinate.
-1 means the element does not belong to Robot1.
Robot2 Supplied The Robot2 element coordinate.
-1 means the element does not belong to Robot2.
Help Click Open online help for the current pane.
