Scalar DLC Reference Guide 125
Mailboxes
In the Select Components area of the pane, selectable Mailboxes is displayed.

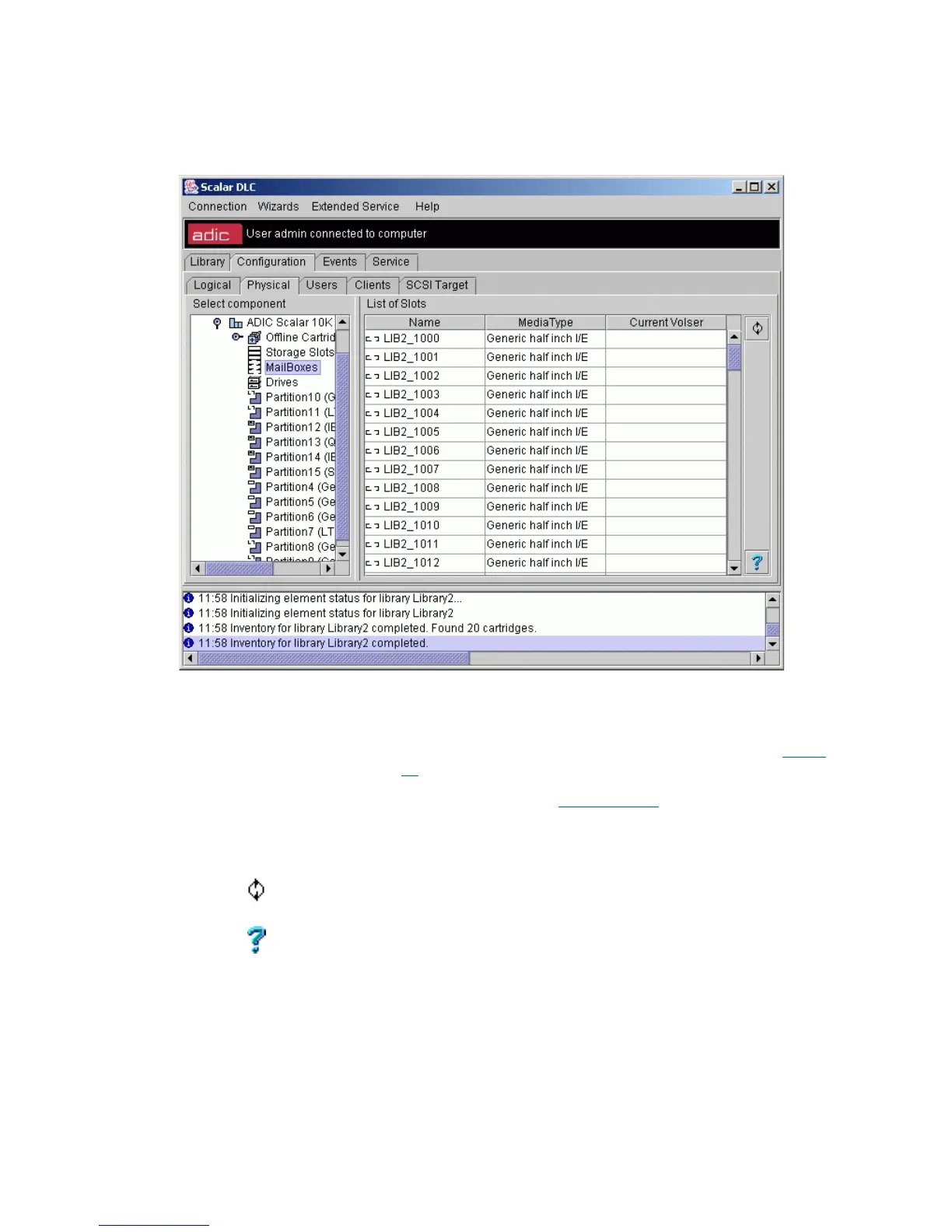

Figure 92 Physical Mailboxes
Field/Button Icon Operation Description
Name Supplied The slot name. The icon also shows the slot state. See Table
15 on page 66.
Media Type Supplied The slot type. Refer to Mailbox Type
s on page 248.
Current volser Supplied If the slot is occupied, the contained cartridge is shown. For
the optical disk, two cartridges are shown.
Refresh Click Force refresh the cartridge list and apply changes in the event
of any difference.
Help Click Open online help for the current pane.
