Scalar DLC Reference Guide 39
Figure below appears when the selected logical library contains no partitions.

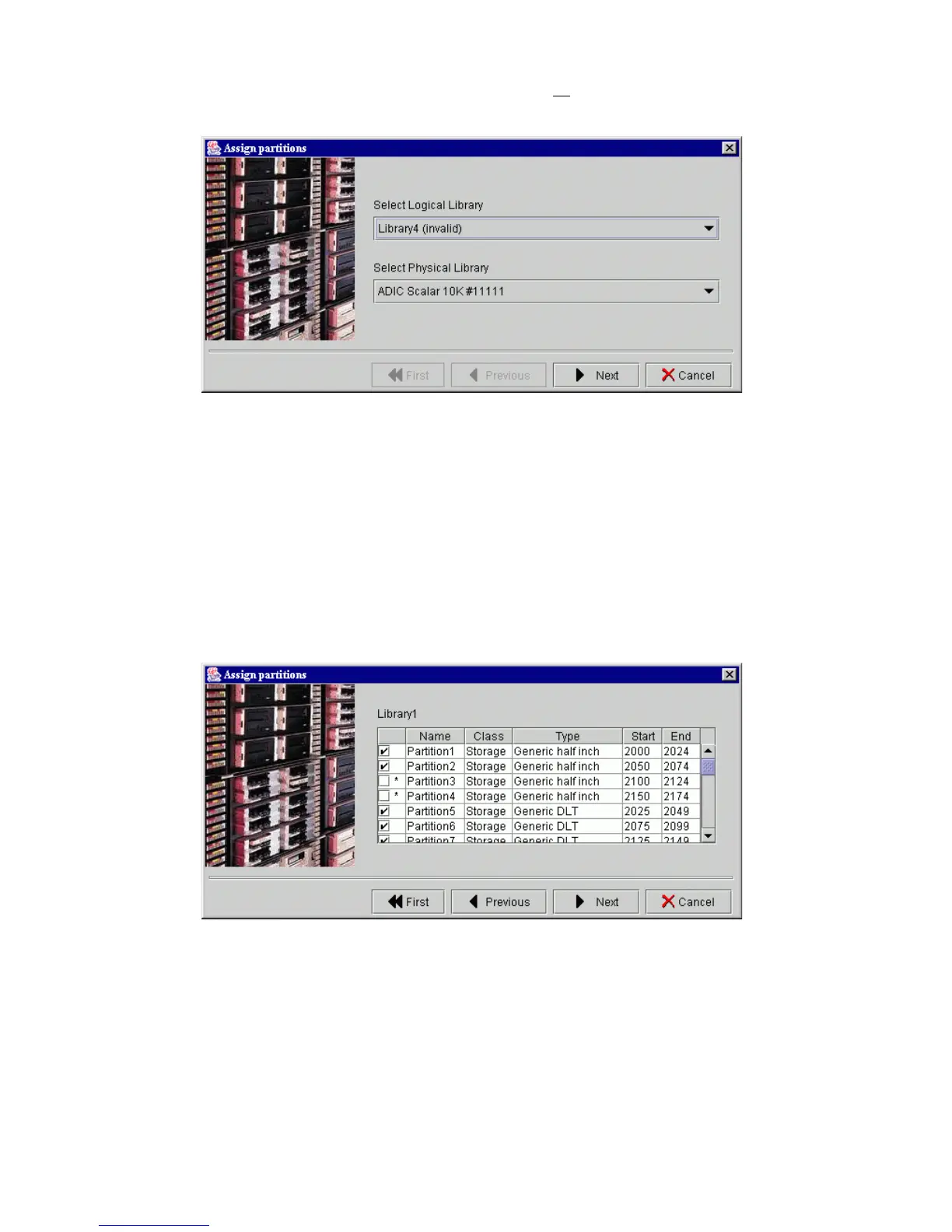

Figure 23 Partitions Not Contained
The next wizard screen shows the assign/unassign dialog.
Figure 24 Partition List
Name Operation Description
Select Logical Library Select The logical library to assign/unassign partition(s).
Select Physical
Library
Supplied The physical library whose partition(s) are already assigned to
the selected logical library.
Select The physical library whose partition(s) should be assigned to
the selected logical library.
Name Operation Description
Library name Supplied The logical library to assign/unassign partition(s).
Partition(s) Check The checked partitions are, or should be, assigned to the logical
library. The not checked partitions currently are not assigned to the
library or should be unassigned from it. The changes are marked with
asterisks.
