Measurements and Results
R&S
®
FSVA3000/ R&S
®
FSV3000
129User Manual 1178.8520.02 ─ 01

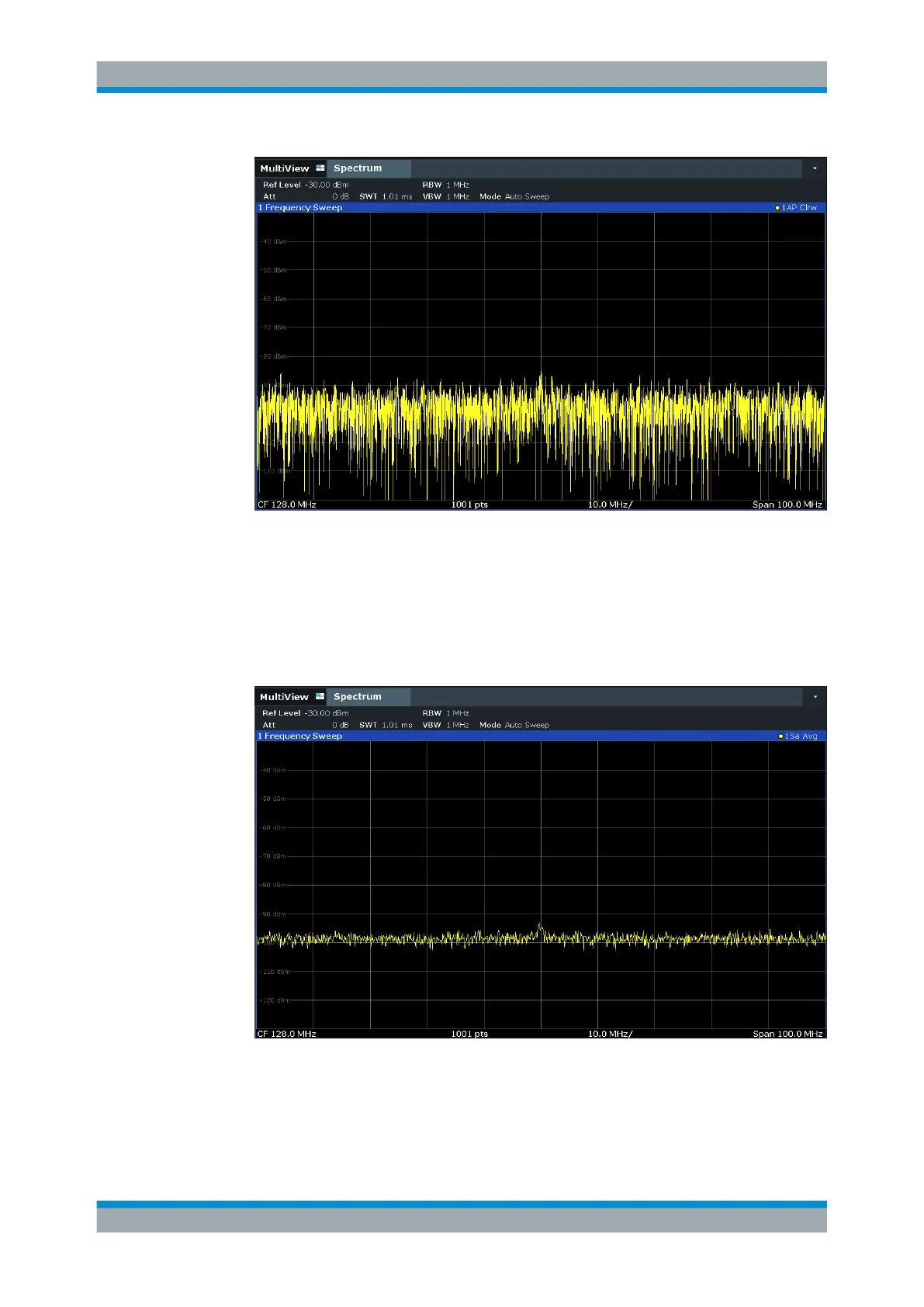

Figure 7-1: Sine wave signal with low S/N ratio
5. To suppress noise spikes, average the trace. In the "Traces" configuration dialog,
set the "Trace Mode" to "Average" (see " Trace Mode " on page 493).
The traces of consecutive sweeps are averaged. To perform averaging, the
R&S FSV/A automatically switches on the sample detector. The RF signal, there-
fore, can be more clearly distinguished from noise.
Figure 7-2: RF sine wave signal with low S/N ratio with an averaged trace
Basic Measurements
