Trace 1 / Trace 2 / Trace 3 / Trace 4 / Trace 5 / Trace 6 ............................................493
Trace Mode ................................................................................................................ 493
Detector ......................................................................................................................494
Hold ............................................................................................................................494
Smoothing ..................................................................................................................494
Average Mode ............................................................................................................495
Average Count ........................................................................................................... 495
Predefined Trace Settings - Quick Config ..................................................................495
Trace 1 / Trace 2 / Trace 3 / Trace 4 (Softkeys)..........................................................496
Copy Trace .................................................................................................................496

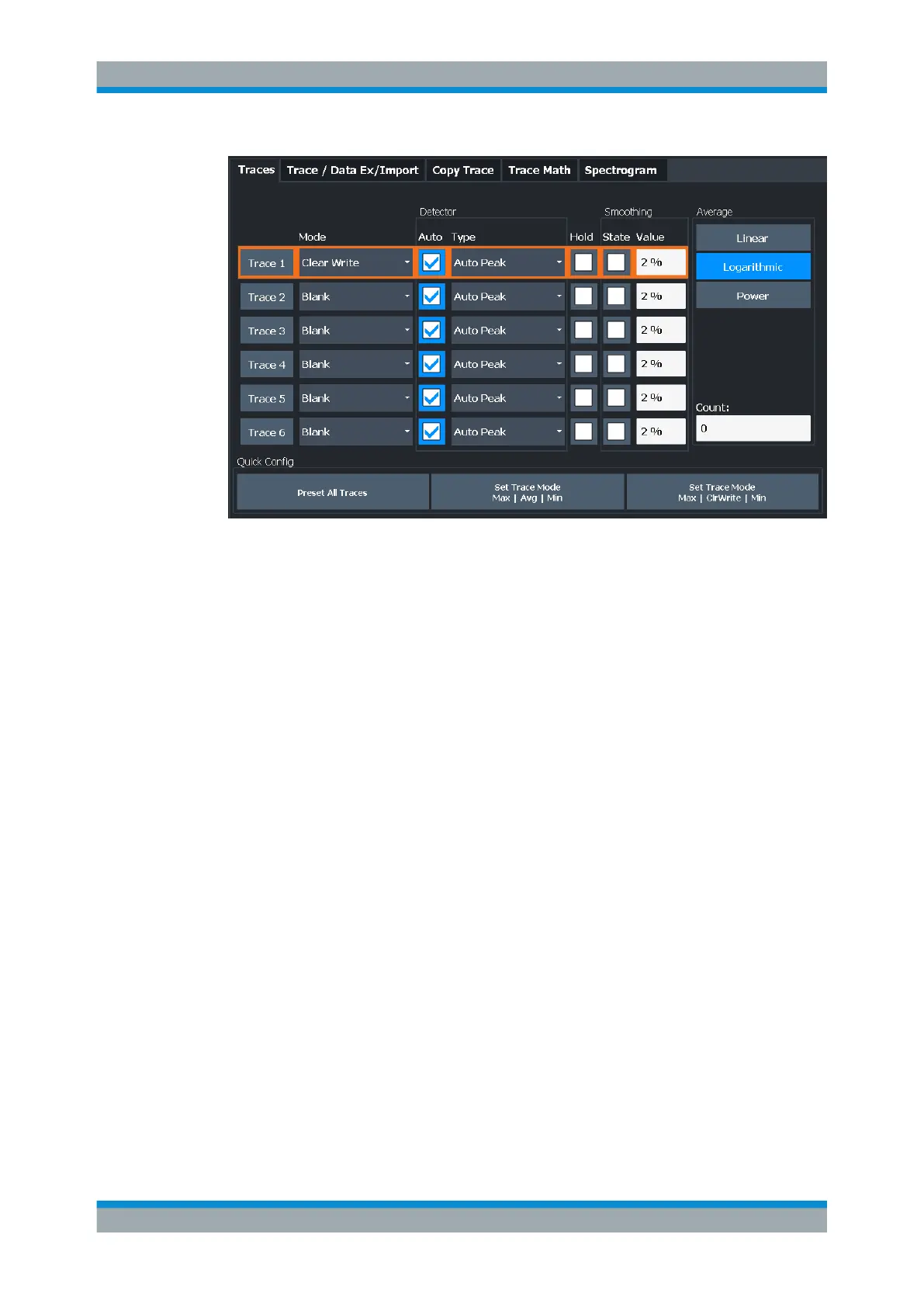

Trace 1 / Trace 2 / Trace 3 / Trace 4 / Trace 5 / Trace 6
Selects the corresponding trace for configuration. The currently selected trace is high-
lighted.
Remote command:
Selected via numeric suffix of:TRACe<1...6> commands
DISPlay[:WINDow<n>][:SUBWindow<w>]:TRACe<t>[:STATe] on page 961
Trace Mode
Defines the update mode for subsequent traces.
For details, see "Analyzing Several Traces - Trace Mode" on page 489.
"Clear/ Write"
Overwrite mode (default): the trace is overwritten by each sweep.
The "Detector" is automatically set to "Auto Peak" .
"Max Hold"
The maximum value is determined over several sweeps and dis-
played. The R&S FSV/A saves each trace point in the trace memory
only if the new value is greater than the previous one.
The "Detector" is automatically set to "PositivePeak" .
This mode is not available for statistics measurements.
Trace Configuration
