Measurements and Results
R&S
®
FSVA3000/ R&S
®
FSV3000
164User Manual 1178.8520.02 ─ 01
In addition to the specific channel settings, the general settings " Standard "
on page 159 and " Number of channels: Tx , Adj " on page 160 are also available in
this tab.

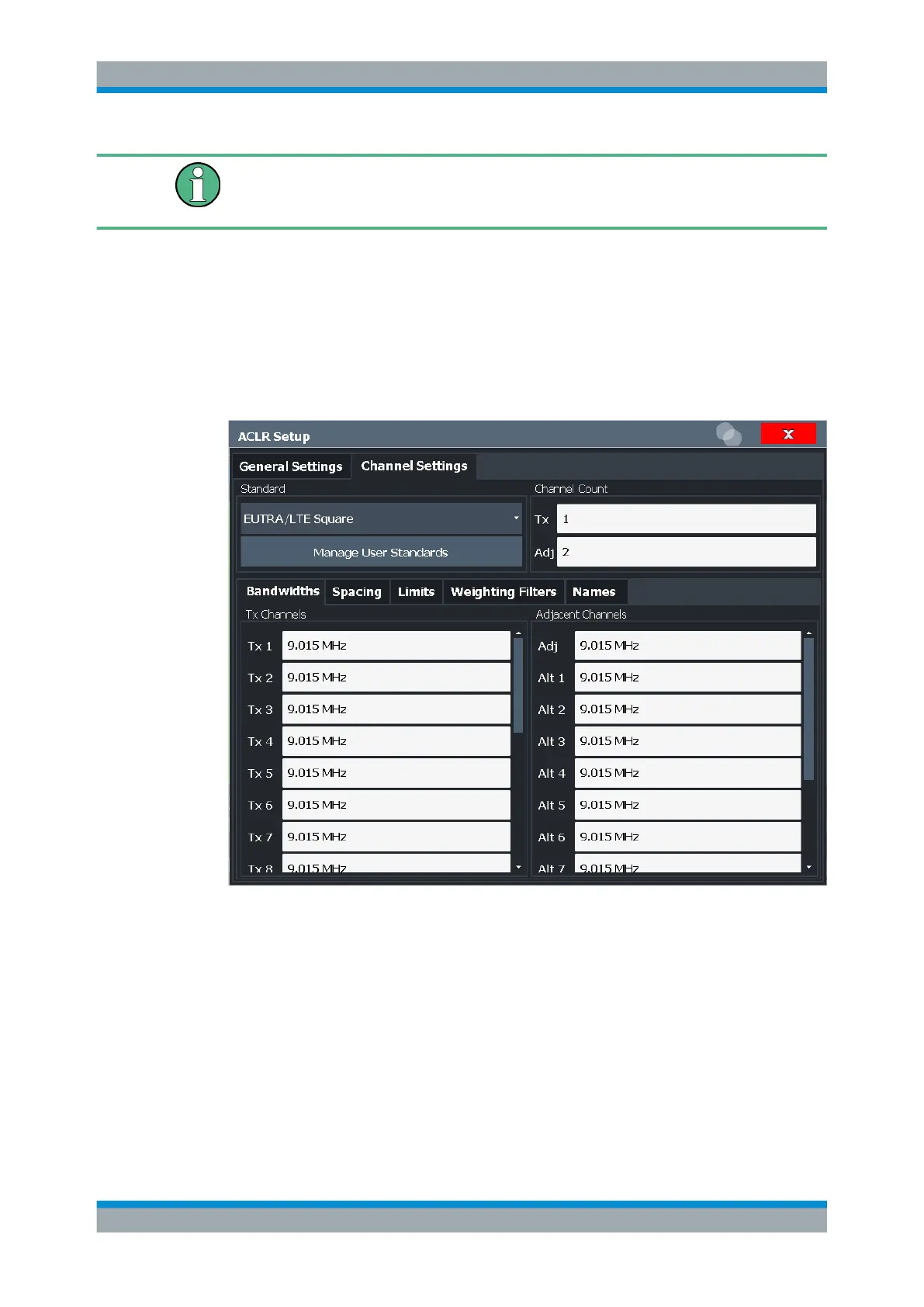

The following settings are available in individual subtabs of the "Channel Settings" tab.
Channel Bandwidth ....................................................................................................164
Channel Spacings ......................................................................................................165
Limit Check ................................................................................................................ 165
Weighting Filters .........................................................................................................166
Channel Names ......................................................................................................... 166
Channel Bandwidth
The Tx channel bandwidth is normally defined by the transmission standard.
The correct bandwidth is set automatically for the selected standard. The bandwidth for
each channel is indicated by a colored bar in the display.
The value entered for any Tx channel is automatically also defined for all subsequent
Tx channels. Thus, only enter one value if all Tx channels have the same bandwidth.
The value entered for any ADJ or ALT channel is automatically also defined for all
alternate (ALT) channels. Thus, only enter one value if all adjacent channels have the
same bandwidth.
Channel Power and Adjacent-Channel Power (ACLR) Measurement
