Measurements and Results
R&S
®
FSVA3000/ R&S
®
FSV3000
166User Manual 1178.8520.02 ─ 01

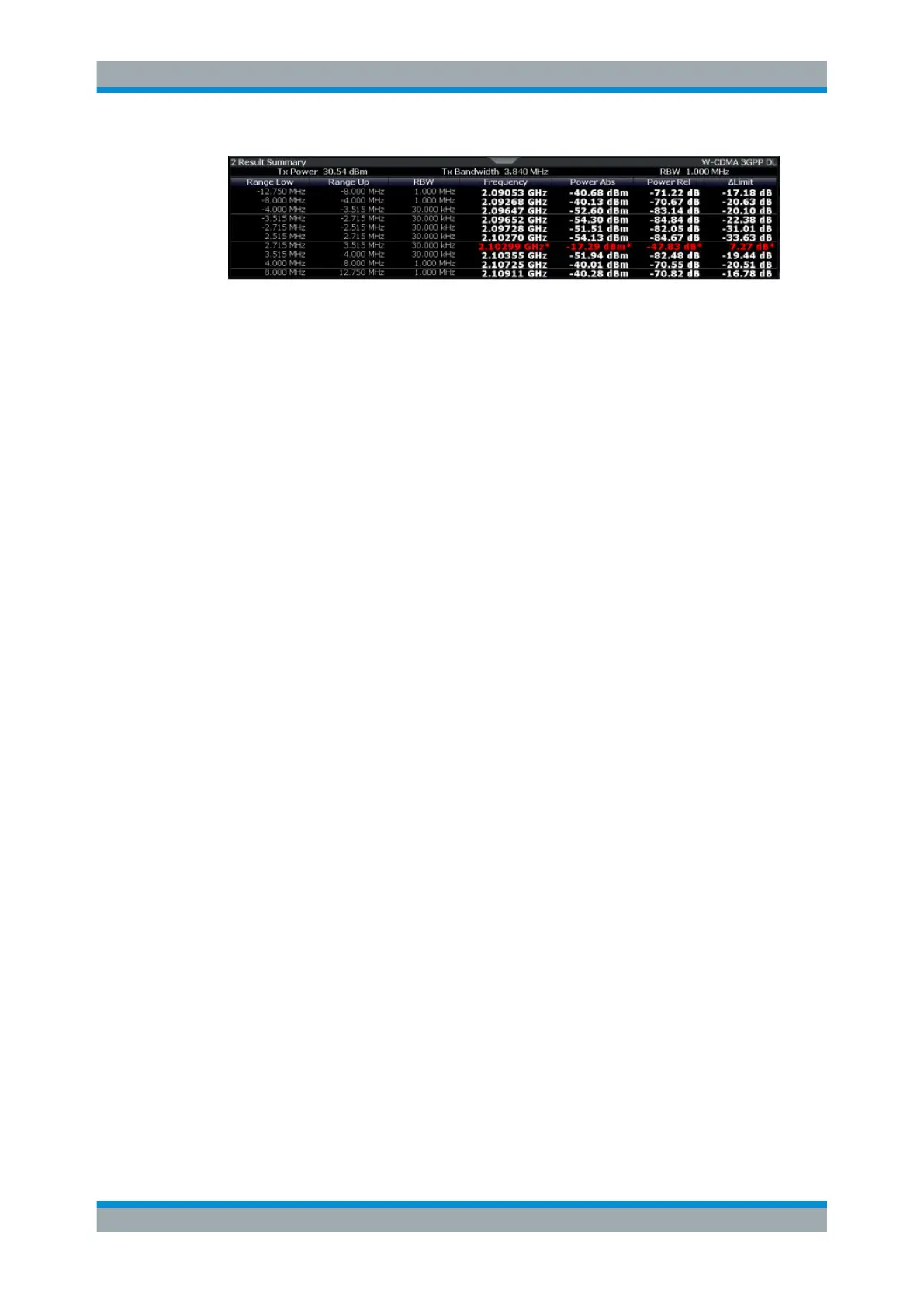

The results of the power limit checks are also indicated in the STAT:QUES:ACPL sta-
tus registry (see "STATus:QUEStionable:ACPLimit Register" on page 673).
Remote command:
CALCulate<n>:LIMit<li>:ACPower[:STATe] on page 765
CALCulate<n>:LIMit<li>:ACPower:ACHannel:ABSolute:STATe on page 761
CALCulate<n>:LIMit<li>:ACPower:ACHannel:ABSolute on page 761
CALCulate<n>:LIMit<li>:ACPower:ACHannel[:RELative]:STATe
on page 763
CALCulate<n>:LIMit<li>:ACPower:ACHannel[:RELative] on page 761
CALCulate<n>:LIMit<li>:ACPower:ALTernate<ch>:ABSolute:STATe
on page 763
CALCulate<n>:LIMit<li>:ACPower:ALTernate<ch>:ABSolute on page 763
CALCulate<n>:LIMit<li>:ACPower:ALTernate<ch>[:RELative]:STATe
on page 765
CALCulate<n>:LIMit<li>:ACPower:ALTernate<ch>[:RELative]
on page 764
CALCulate<n>:LIMit<li>:ACPower:ACHannel:RESult? on page 762
Weighting Filters
Weighting filters allow you to determine the influence of individual channels on the total
measurement result. For each channel you can activate or deactivate the use of the
weighting filter and define an individual weighting factor ( "Alpha:" value).
Weighting filters are not available for all supported standards and cannot always be
defined manually where they are available.
Remote command:
Activating/Deactivating:
[SENSe:]POWer:ACHannel:FILTer[:STATe]:CHANnel<ch> on page 759
[SENSe:]POWer:ACHannel:FILTer[:STATe]:ACHannel on page 758
[SENSe:]POWer:ACHannel:FILTer[:STATe]:ALTernate<ch> on page 759
Alpha value:
[SENSe:]POWer:ACHannel:FILTer:ALPHa:CHANnel<ch> on page 758
[SENSe:]POWer:ACHannel:FILTer:ALPHa:ACHannel on page 757
[SENSe:]POWer:ACHannel:FILTer:ALPHa:ALTernate<ch> on page 758
Channel Names
In the R&S FSV/A's display, carrier channels are labeled "Tx" by default; the first neigh-
boring channel is labeled "Adj" (adjacent) channel; all others are labeled "Alt" (alter-
nate) channels. You can define user-specific channel names for each channel which
are displayed in the result diagram and result table.
Channel Power and Adjacent-Channel Power (ACLR) Measurement
