Remote command:
Activating/Deactivating:
[SENSe:]POWer:ACHannel:FILTer[:STATe]:SBLock<sb>:CHANnel<ch>
on page 768
Alpha value:
[SENSe:]POWer:ACHannel:FILTer:ALPHa:SBLock<sb>:CHANnel<ch>
on page 767
7.3.5.3 MSR Adjacent Channel Setup
Access: "Overview" > "Select Measurement" > "Channel Power ACLR" > "CP / ACLR
Standard" > "Standard" : "Multi-Standard Radio" > "CP / ACLR Config" > "Adjacent
Channels" tab
The "Adjacent Channels" tab provides all the channel settings to configure adjacent
and gap channels in MSR ACLR measurements.
For symmetrical channel definition (see " Symmetrical Adjacent Setup " on page 171),
the dialog box is reduced as the upper and lower channels are identical.

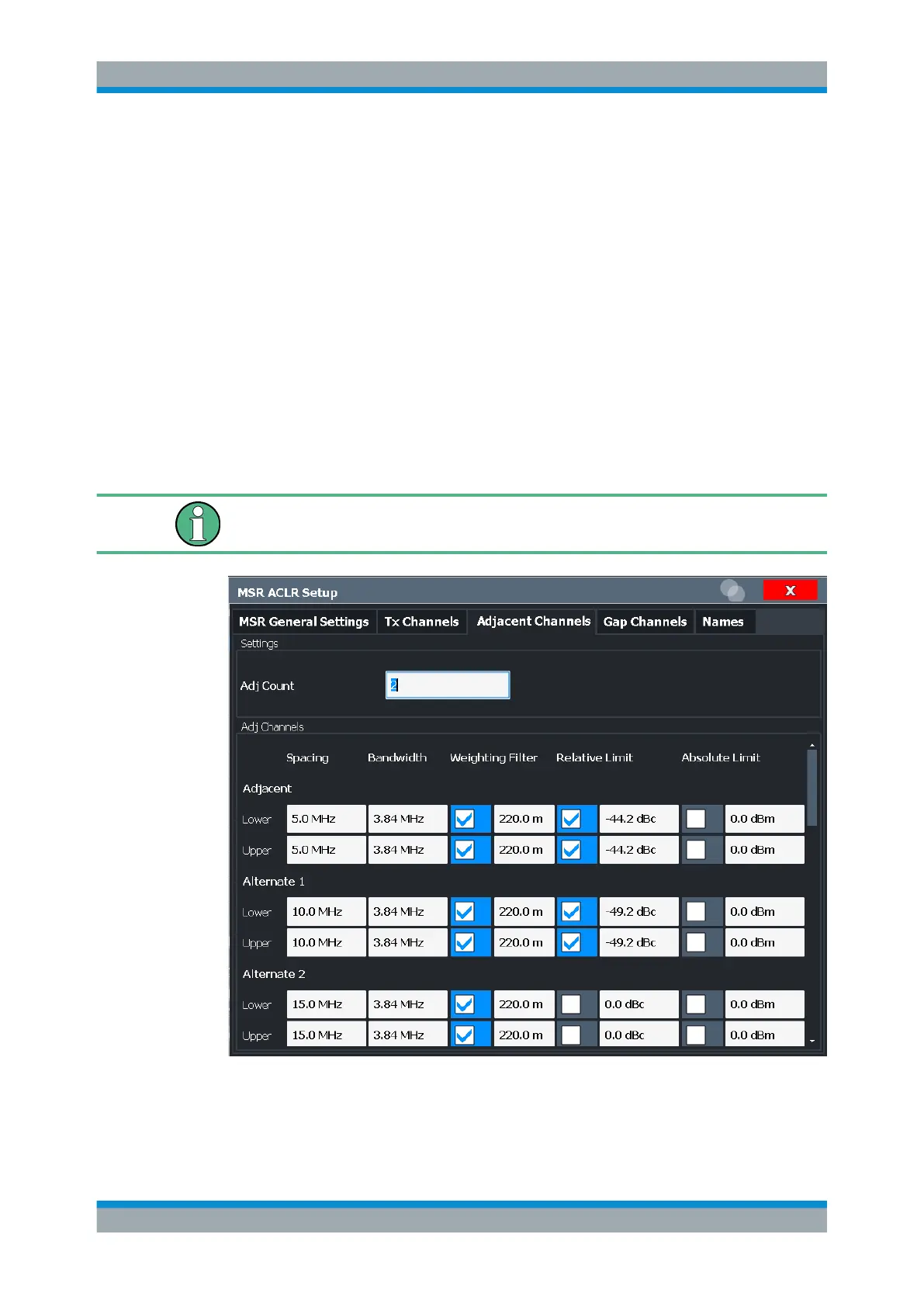

Figure 7-28: Asymmetrical adjacent channel definition
Channel Power and Adjacent-Channel Power (ACLR) Measurement
