Rule Name
Defines the unique name for the actions to be taken under specific conditions.
Choose Event
Defines the event that triggers the action.
Depending on the selected event, further parameters are available.

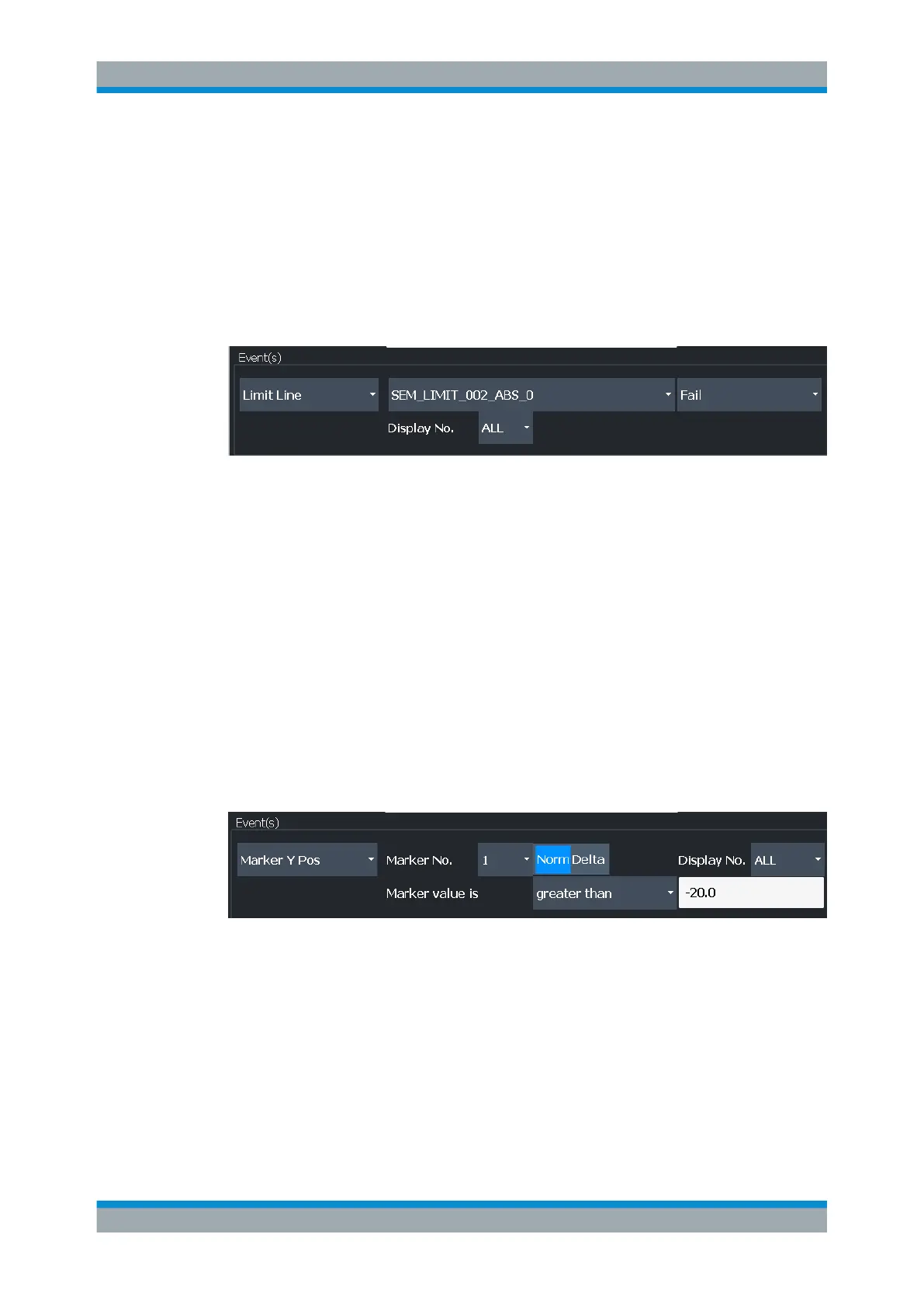

Limit Line ← Choose Event
The result of a limit line check triggers the actions.
Limit Line ← Limit Line ← Choose Event
The name of a limit line that is defined for the current measurement channel (see
Chapter 9.4.2, "Limit Lines", on page 470).
The limit line must be active in the current measurement channel for the rule to be pro-
cessed.
Trigger Condition ← Limit Line ← Choose Event
The result of the limit check ("Pass" / "Fail") that triggers the actions.
Window No. ← Limit Line ← Choose Event
Window in which the specified marker is evaluated.
Marker Y Pos ← Choose Event
The value of a specific marker triggers the actions. The marker must be active in the
current measurement channel for the rule to be processed (see " Marker State "
on page 430).
Marker No. ← Marker Y Pos ← Choose Event
The marker whose value triggers the actions; only for marker 1: also the marker type
("Norm"/"Delta")
Window No. ← Marker Y Pos ← Choose Event
Window in which the specified marker is evaluated.
Trigger condition (Marker value is) ← Marker Y Pos ← Choose Event
The relation of the marker value to the specified value ("greater than" / "lower than")
that triggers the actions
