Changing the Channel Name
The measurement channels are labeled with their default name. If that name already
exists, a sequential number is added. You can change the name of the measurement
channel by double-tapping the name in the channel bar and entering a new name.
For an overview of default names, see INSTrument:LIST? on page 738.
Note: Channel name restrictions. Channel names can have a maximum of 31 charac-
ters, and must be compatible with the Windows conventions for file names. In particu-
lar, they must not contain special characters such as ":", "*", "?".
Remote command:
INSTrument:REName on page 739
5.4.1.2 Window Title Bar
Each channel in the R&S FSV/A display can contain several windows. Each window
can display either a graph or a table as a result of the channel measurement. Which
type of result evaluation is displayed in which window is defined in the display configu-
ration (see Chapter 5.4.5, "Displaying Results", on page 97). The window title bar
indicates which type of evaluation is displayed.
Double-tap the window title bar to enlarge the window temporarily. Double-tap it again
to restore the original size.
See also Chapter 5.4.5.4, "Switching Between a Split and Maximized Window Display",
on page 103.

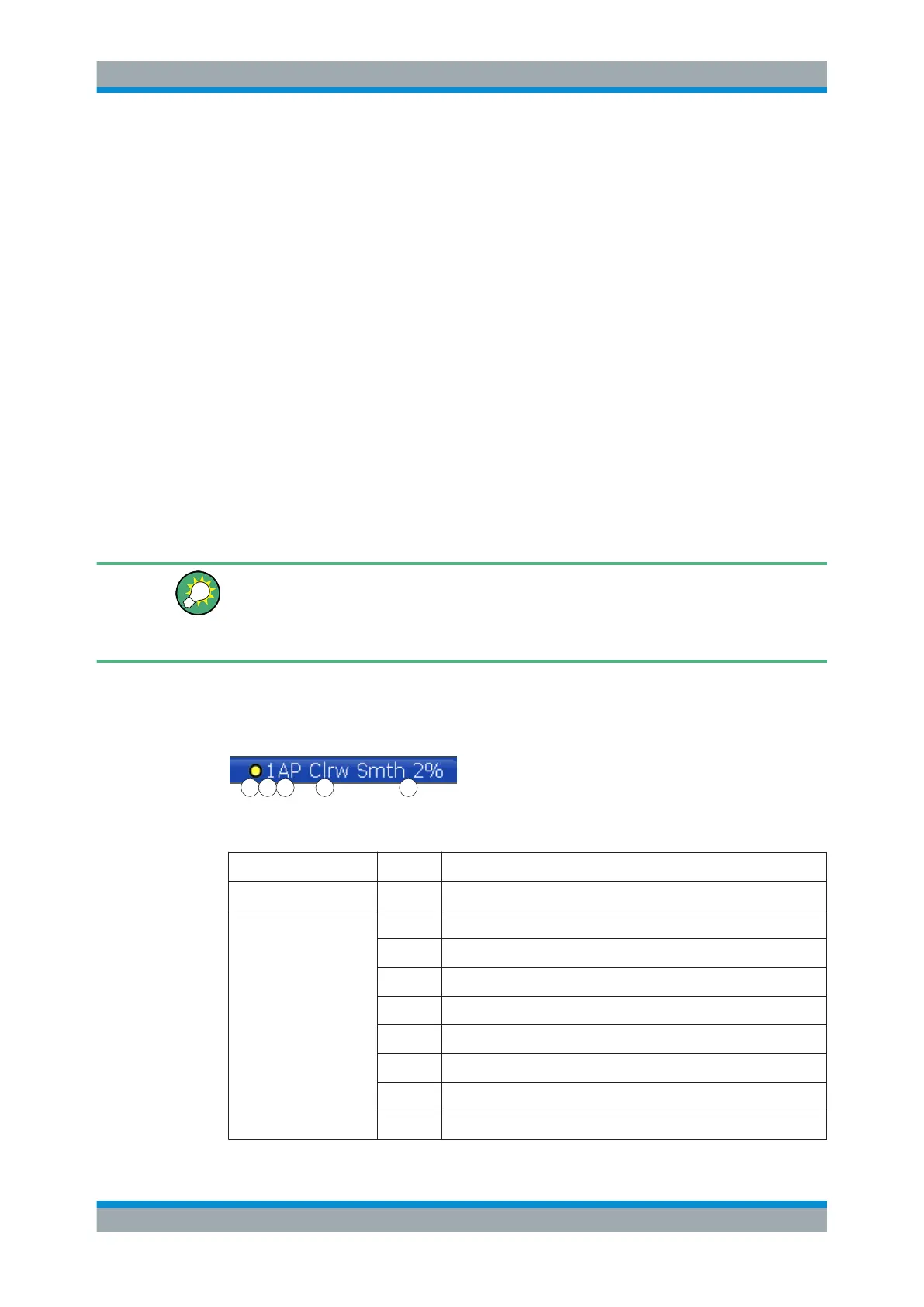

Trace Information in Window Title Bar
Information on the displayed traces is indicated in the window title bar.
2
1 3 4 5
(1) Trace color
Color of trace display in diagram
(2) Trace no.
Trace number (1 to 6)
(3) Detector
Selected detector:
AP AUTOPEAK detector
Pk MAX PEAK detector
Mi MIN PEAK detector
Sa SAMPLE detector
Av AVERAGE detector
Rm RMS detector
QP QUASIPEAK detector
