Jogger Unit (B513)
SM 2-55 D062/D063/D065/D066
Installation

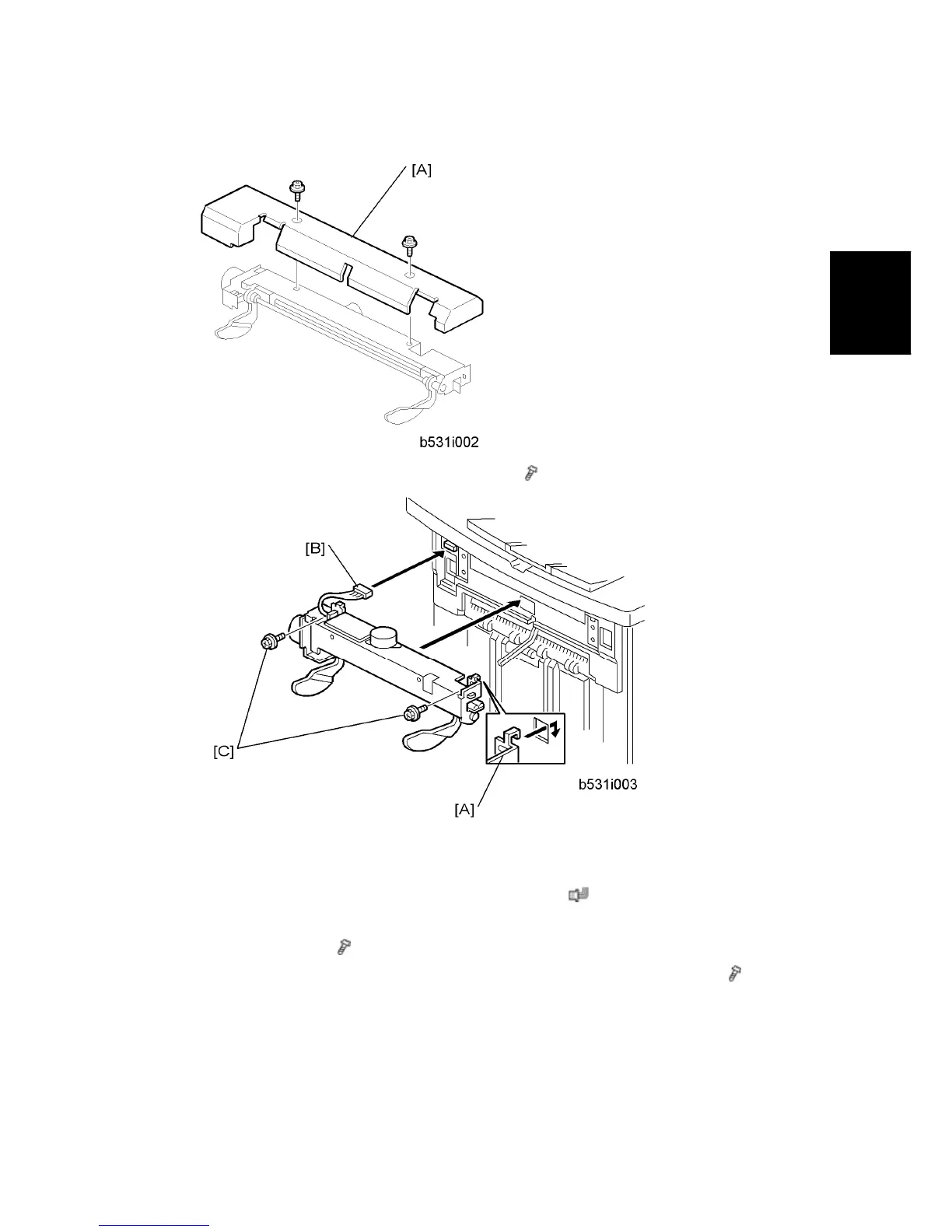

3. Remove the cover plate [A] from the jogger unit (
x 2). Keep the screws.
4. With the jogger unit connector on the left side, hook the frame of the jogger unit [A] into
the holes on the left and right side of the finisher frame.
5. On the left side, fasten the connector [B] to the socket (
x 1).
6. On the left and right side, attach the jogger unit frame to the side of the finisher with the
screws [C] provided (
x 2).
7. Re-attach the jogger unit cover to its frame with the screws removed in step 2 (
x 2).
