Ricoh D065 - Bypass Junction Gate

Details
D454 100 SM

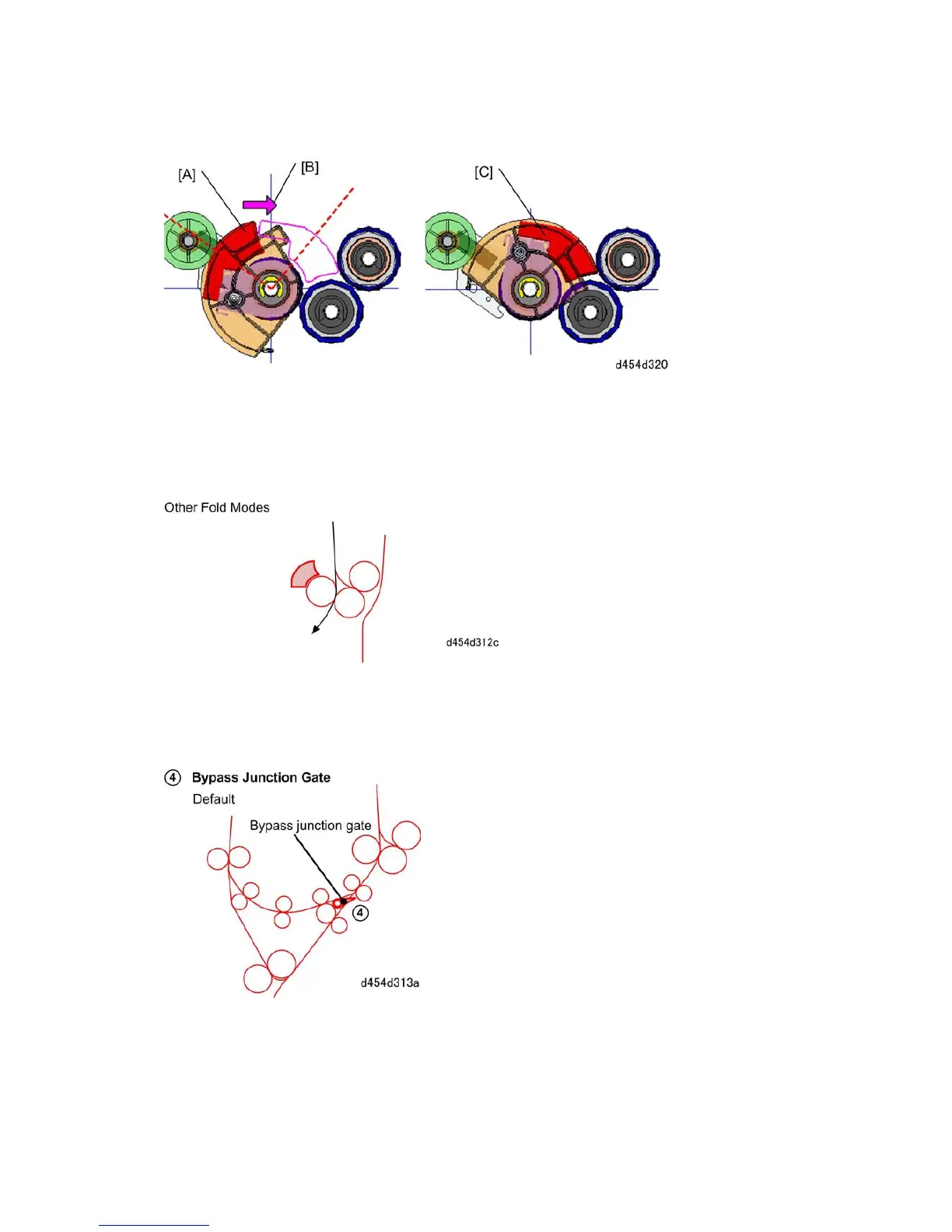

For all fold modes other than FM2 (Half Fold) the direct send junction gate remains at its
home position.
 For FM2 the direct send junction gate motor rotates the junction gate [B] to position [C].
 After the job is finished the motor rotates the junction gate back to its home position [A].
For the other fold modes (FM1, FM3 to FM6) the junction gate remains at its home position
and does not touch the paper.
Bypass Junction Gate
This is the bypass junction gate at its home position.
