3.5.4 ENTRANCE AND STAPLER TRAY ENTRANCE SENSORS
Entrance Sensor
1. Disconnect the finisher from the copier.
2. Remove the sensor bracket [A] ( x 1).
3. Replace the entrance sensor [B] ( x 1,  x 1).
Stapler Tray Entrance Sensor
1. Open the front door.
2. Remove the sensor bracket [C] ( x 1).
3. Replace the stapler tray entrance sensor [D] ( x 1,  x 1).

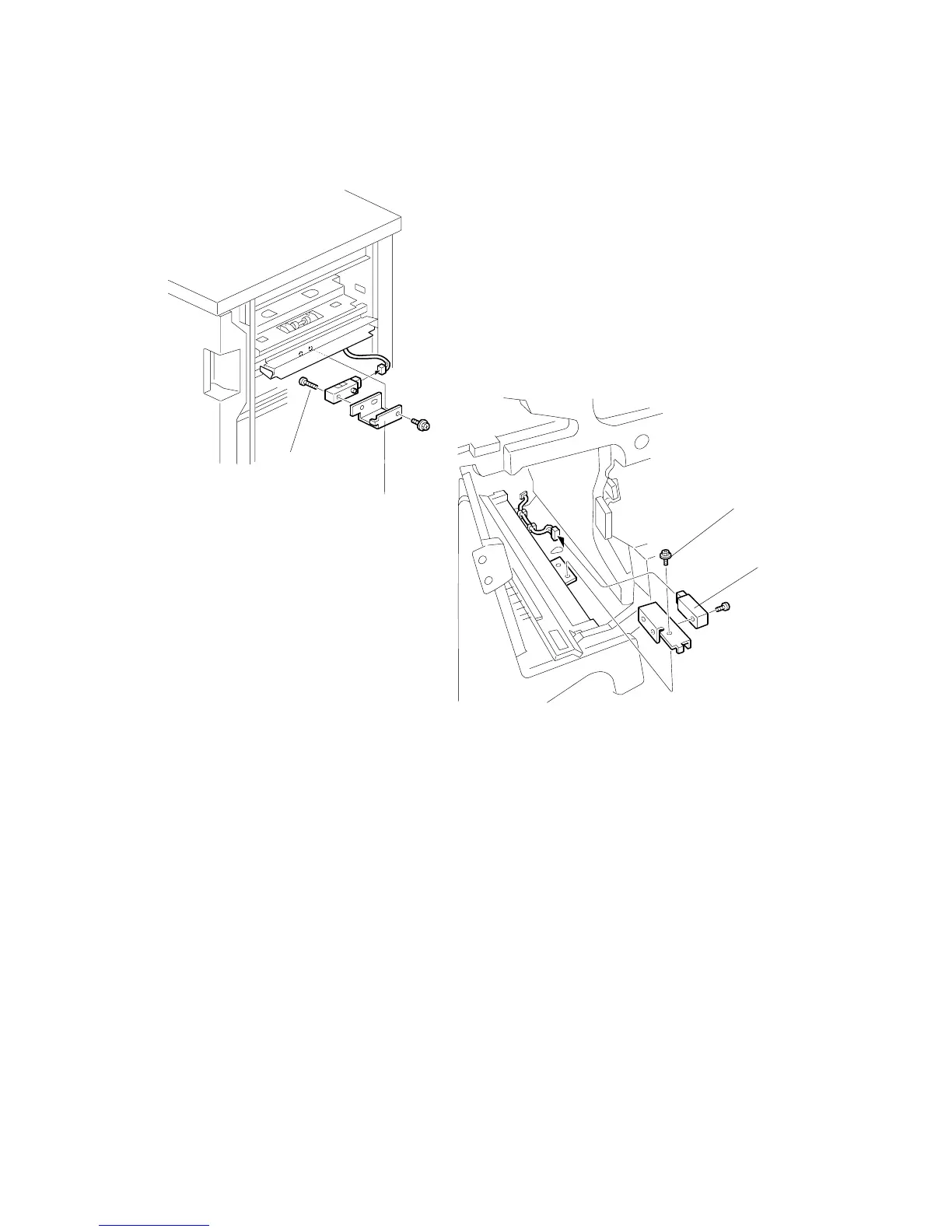

B478R513.WMF
