Electrical Components: Rear Side
SM 13 D454
Multi-Folding
Unit FD5000
D454

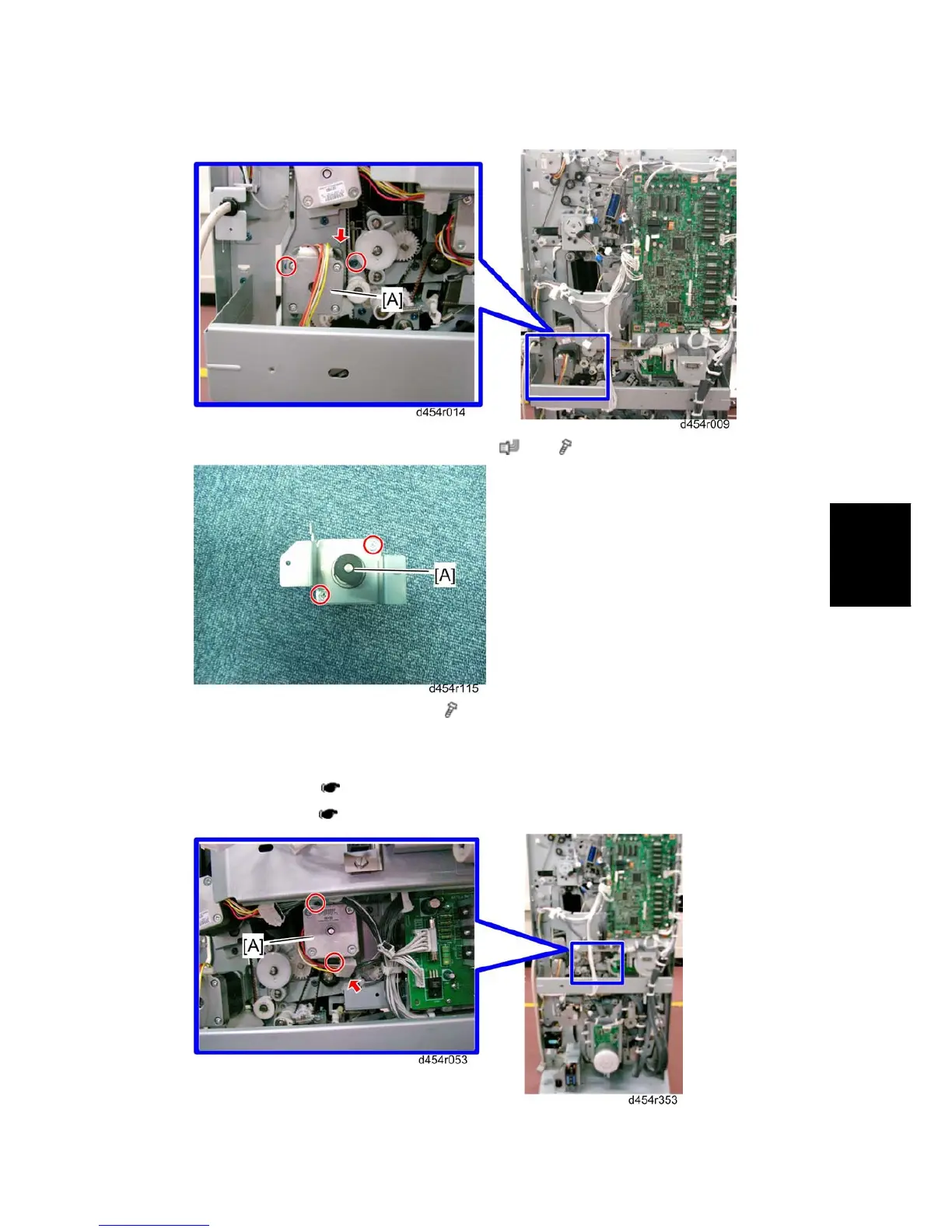

3. Registration roller release motor bracket [A] (
x 1, x 2)
4. Registration roller release motor [A] (
x 2)
1.2.10 REGISTRATION ROLLER TRANSPORT MOTOR
1. Rear upper cover ( p.4)
2. Rear lower cover (
p.4)
