Replacement and Adjustment
D454 6 SM
2. Top tray right cover [A] (
x 1)

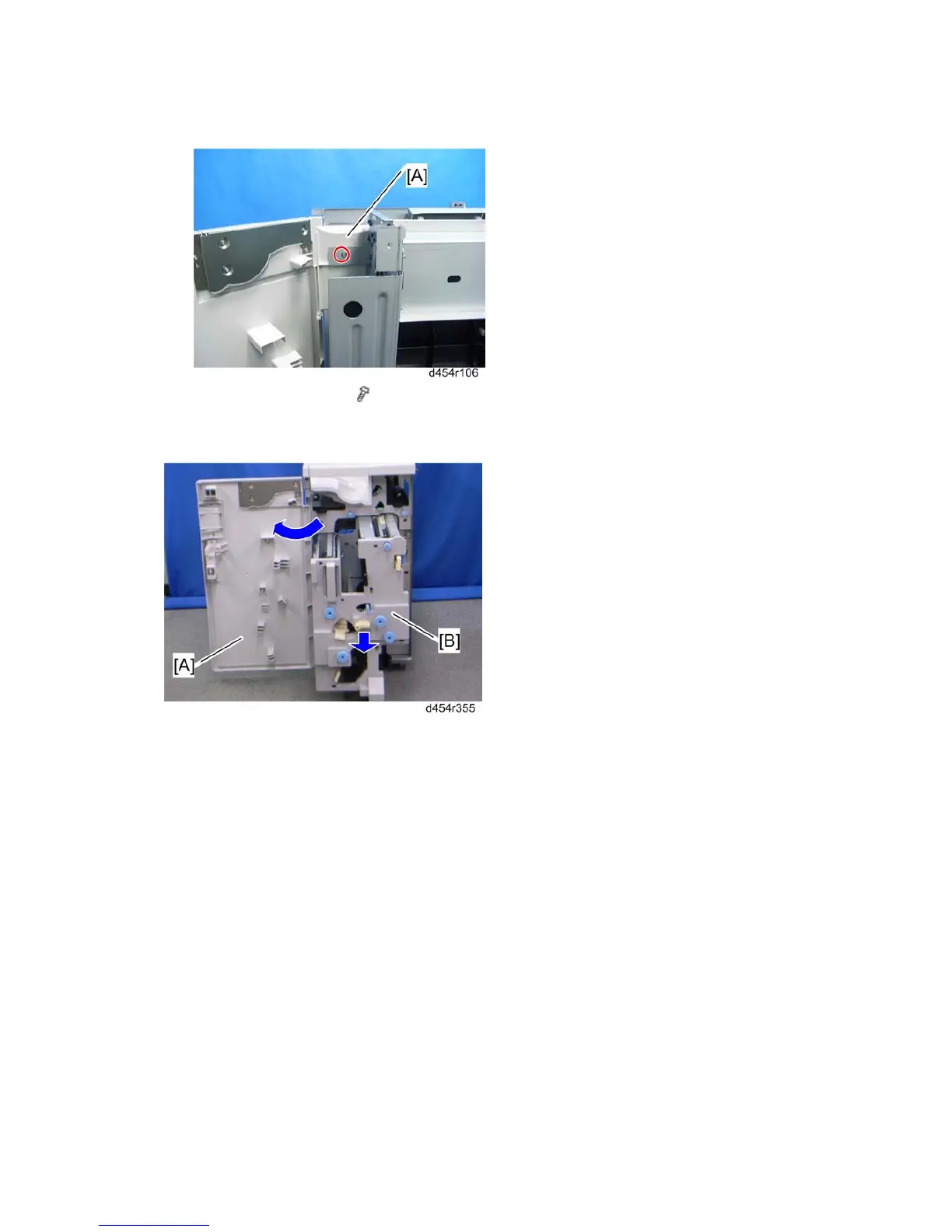

1.1.12 PULLING OUT THE FOLDING UNIT DRAWER
1. Open the front door [A]
2. Pull out the folding unit drawer [B].
