Development Unit
SM 4-43 D062/D063/D065/D066
Replacement
and
Adjustment
4.7 DEVELOPMENT UNIT
4.7.1 DEVELOPER REPLACEMENT
Preparation

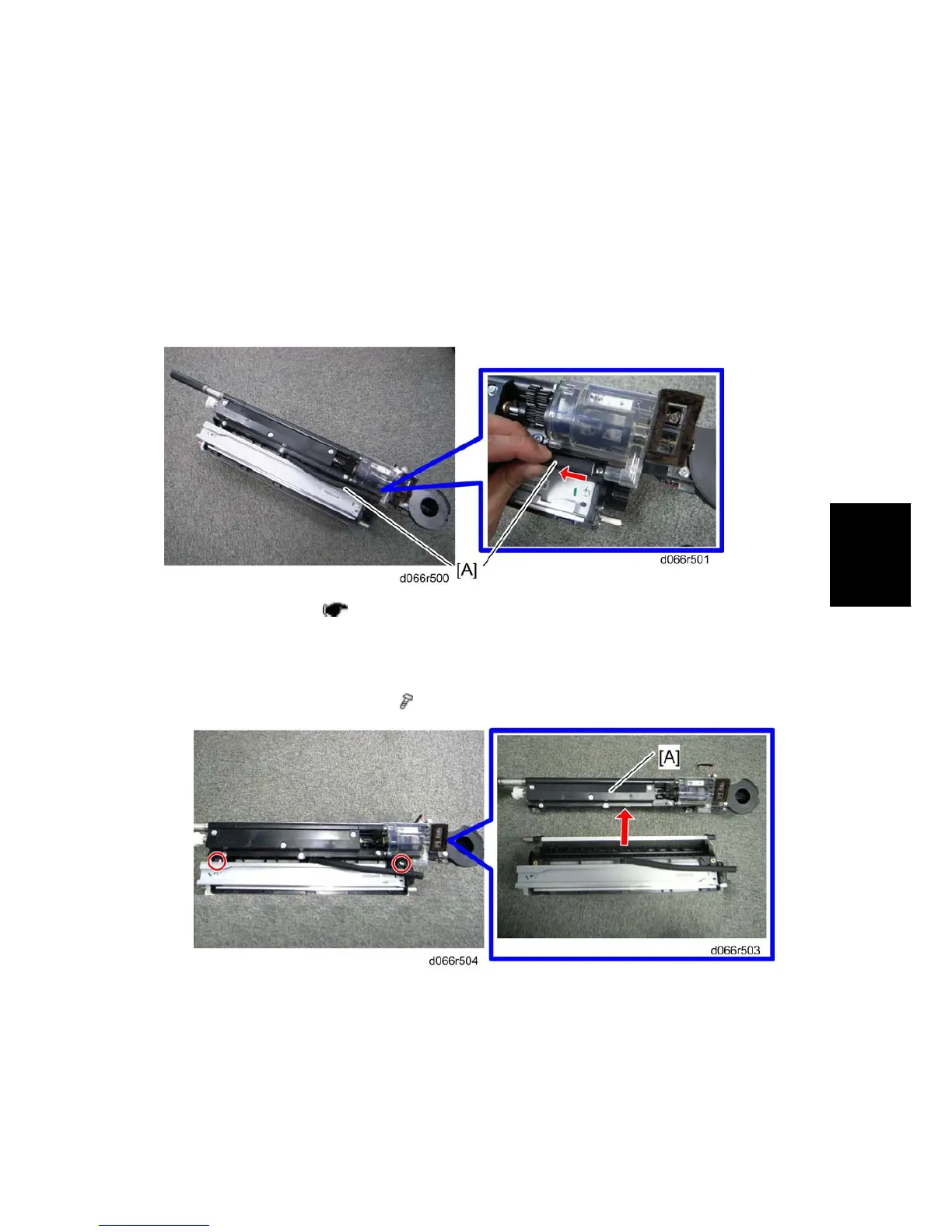

For D066 only, the pressure release tube [A] should be removed before removing the
development unit.
1. Development unit (
p.4-25 "Development Unit Removal")
2. Pressure release tube [A]
Removal
1. Remove the toner hopper [A] ( x 2)
2. Rotate the toner hopper very slightly (10° to 20°) as you slide it up to remove it. To
avoid toner spill, hold the hopper level as you remove it
