OVERVIEW
SM 9 B473
Large
Capacity Tray
B473

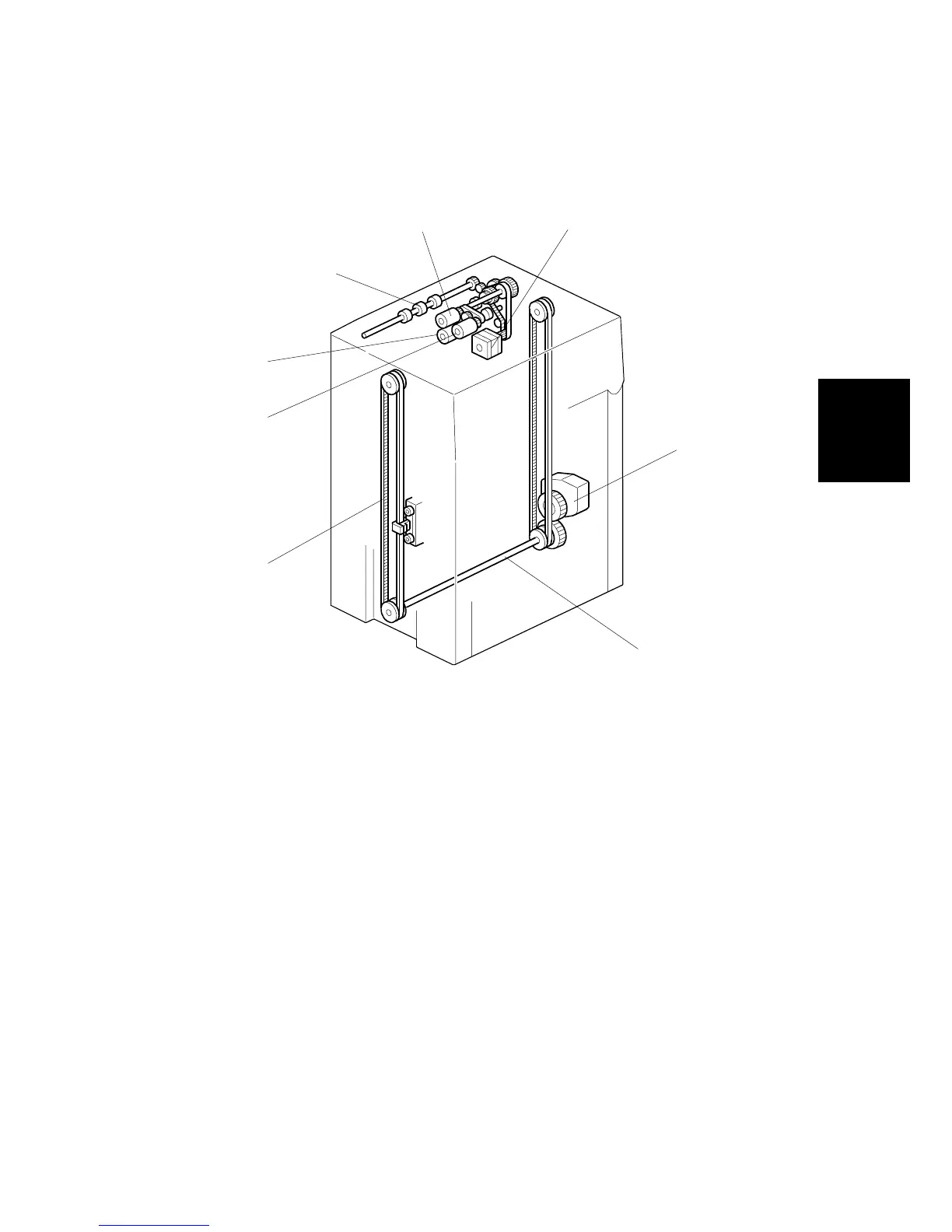

2.1.2 LCT DRIVE LAYOUT
1. Pick-up Roller
2. Separation Roller
3. Transport Rollers
4. Feed Roller
5. Feed Motor
6. Tray Motor
7. Tray Lift Shaft
8. Tray Drive Belt
B473D003.WMF
7
6
5
4
3
2
1
8
