Exterior and Inner Covers
SM 1 D454
Multi-Folding
Unit FD5000
D454
1. REPLACEMENT AND ADJUSTMENT
1.1 EXTERIOR AND INNER COVERS
1.1.1 FRONT DOOR UPPER COVER

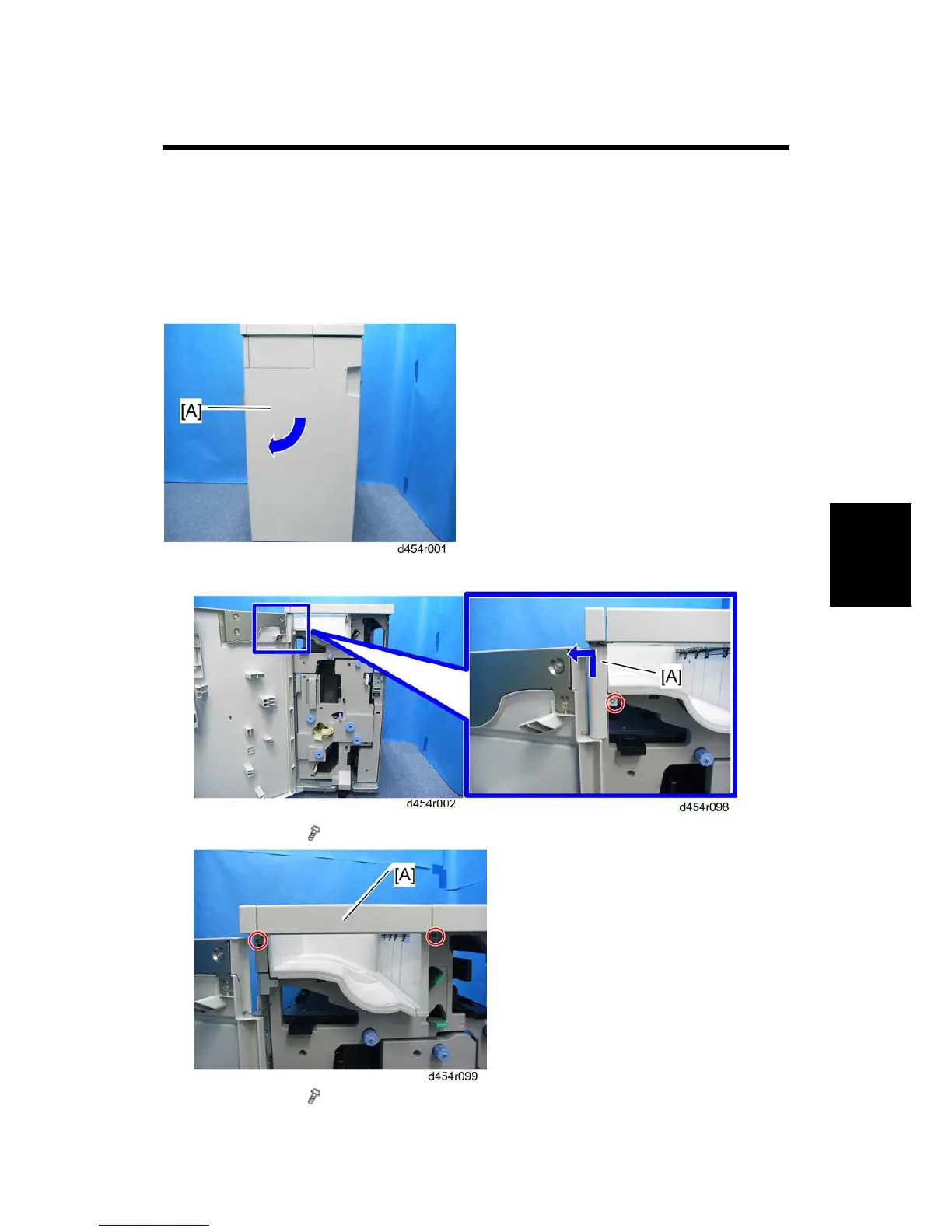

1. Open the front door [A].
2. Hinge cover [A] (
x 1)
3. Cross-piece [A] ( x 2)
