Paper Feed
D062/D063/D065/D066 4-94 SM

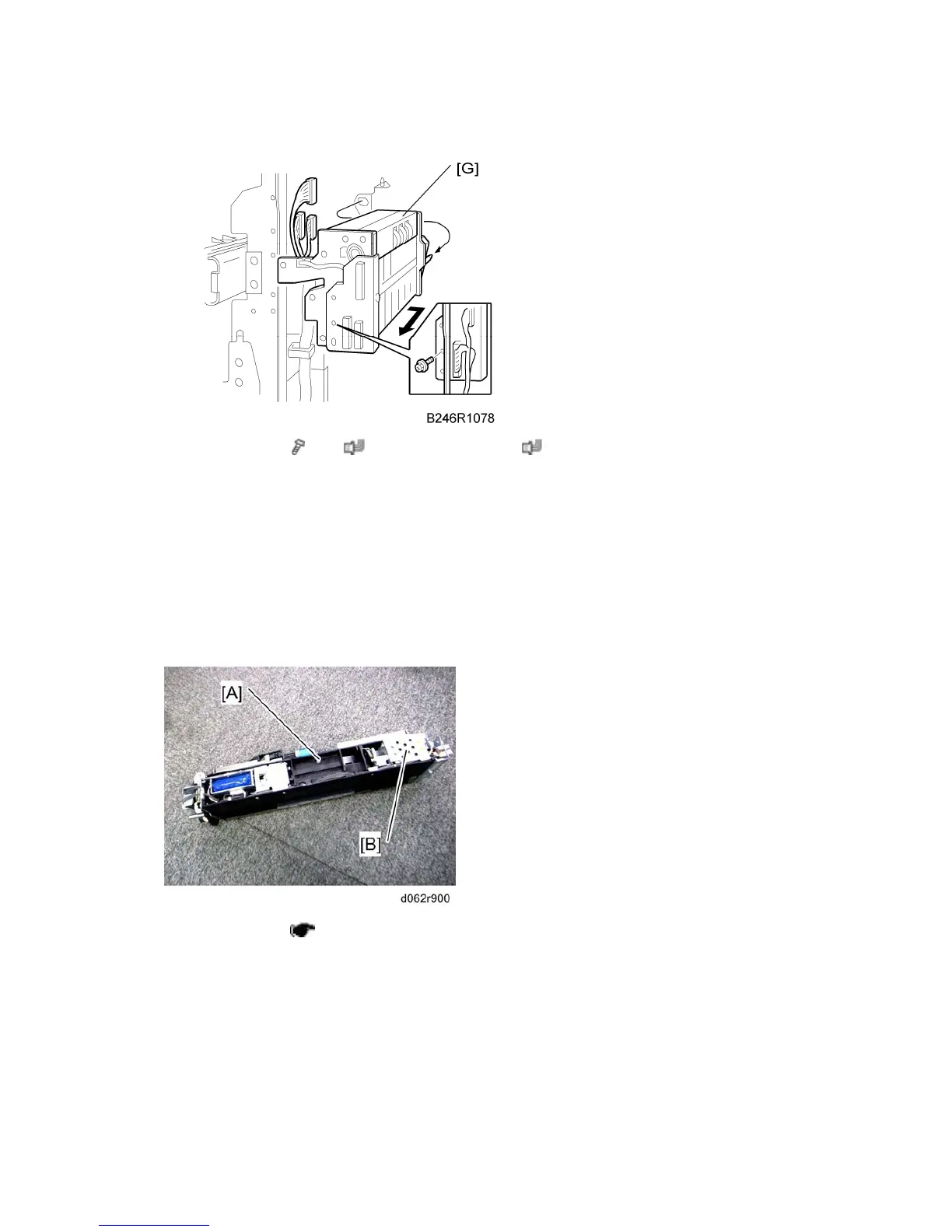

6. Feed unit [G] (
x 1, x 3 for D062/D063 or x 2 for D065/D066)
Insert your hand from the right and pull the feed unit forward.
To avoid hitting the unit on the sides of the machine, remove it carefully and slowly.
4.11.10 PAPER FEED MOTORS
D062/D063 have the paper feed motor in each feed unit. However, D065/D066 have the
feed motors at the rear of the machine.
For D062/D063
1. Feed unit [A] (
p.4-92 "Feed Unit")
Paper feed motor [B]
To Next Page
