Ricoh D065 - Fusing Exit Sensor and Exit Unit Entrance Sensors

Fusing Unit
SM 4-73 D062/D063/D065/D066
Replacement
and
Adjustment
4.9.12 FUSING EXIT SENSOR AND EXIT UNIT ENTRANCE
SENSORS

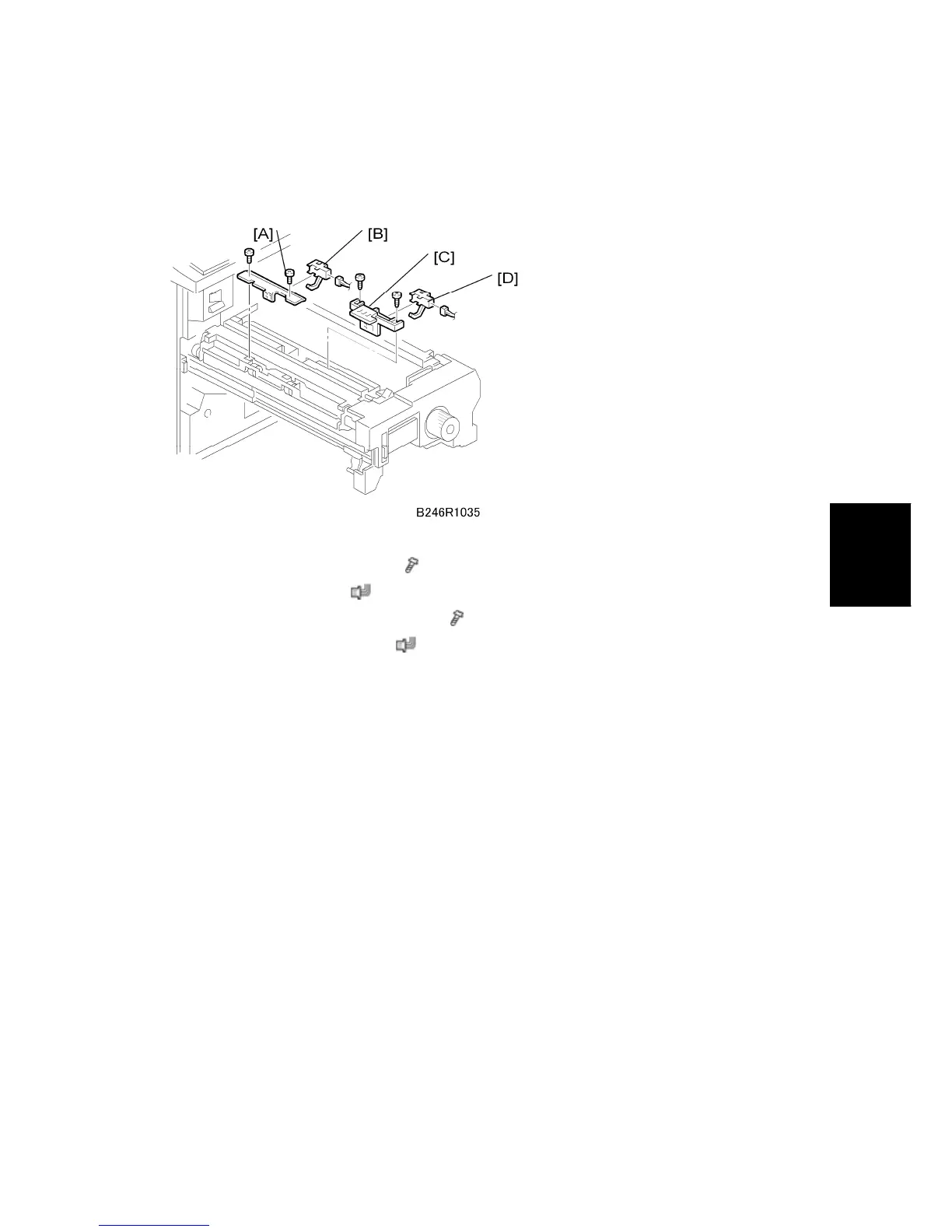

1. Open the front door and pull out the exit/inverter unit.
2. Fusing exit sensor bracket [A] (
x 2)
3. Fusing exit sensor [B] (
x 1)
4. Exit unit entrance sensor bracket [C] (
x 2)
5. Exit unit entrance sensor [D] (
x 1)
