Ricoh D065 - Direct Send Junction Gate

Paper Path
SM 99 D454
Multi-Folding
Unit FD5000
D454
Direct Send Junction Gate

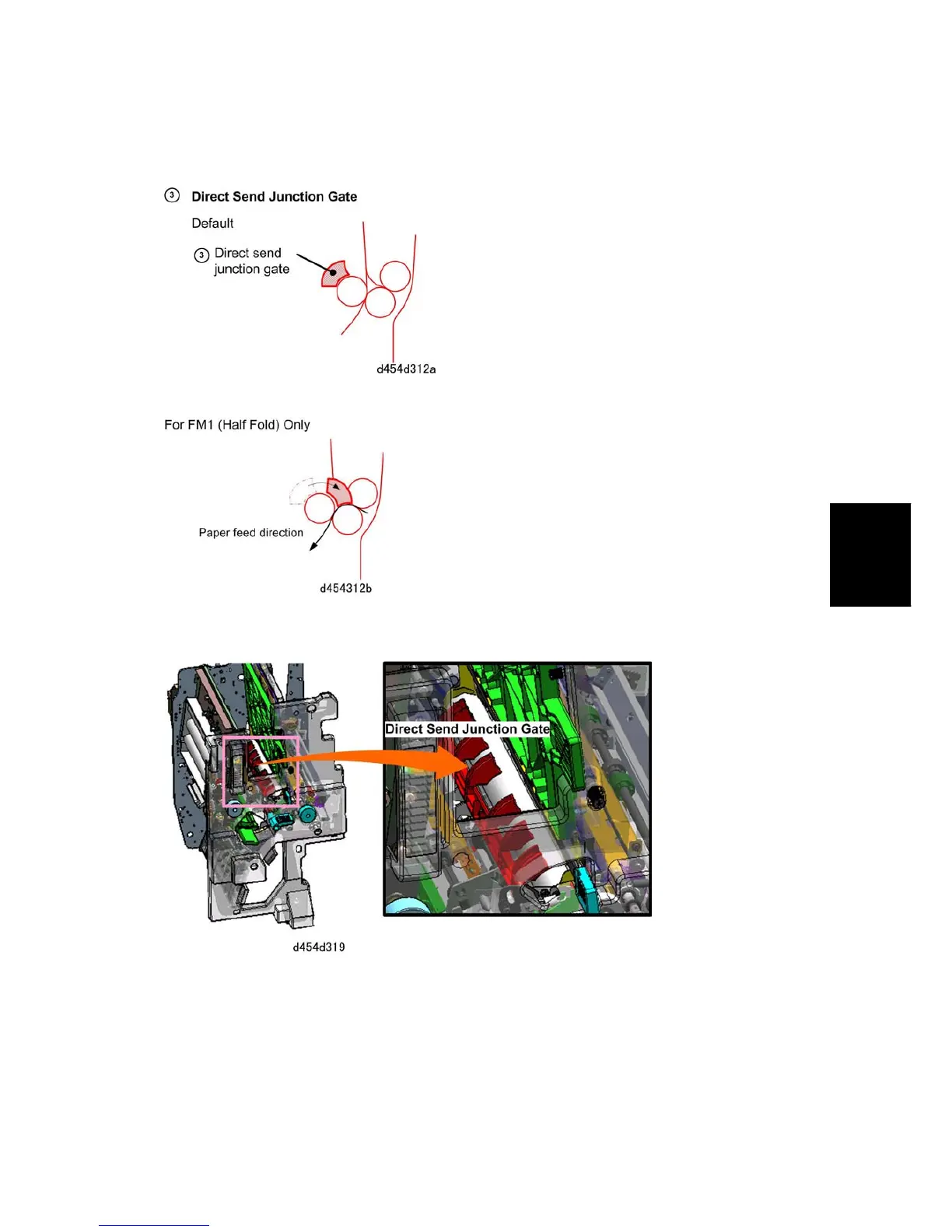

This is the direct send junction gate at its home position.
The junction gate rotates to the right and paper is sent downstream without passing stopper
2. This is down for FM2 mode only when the paper is folded into equal halves.
The illustration above shows the actual location and appearance of the direct send junction
gate.
