Ricoh D065 - Exposure Lamp; Lens Block

Scanner
SM 4-13 D062/D063/D065/D066
Replacement
and
Adjustment
4. Original length sensor bracket[B] ( x 2, x 2)
 For EU: Length sensor x 1
 For NA: Length sensor x 2

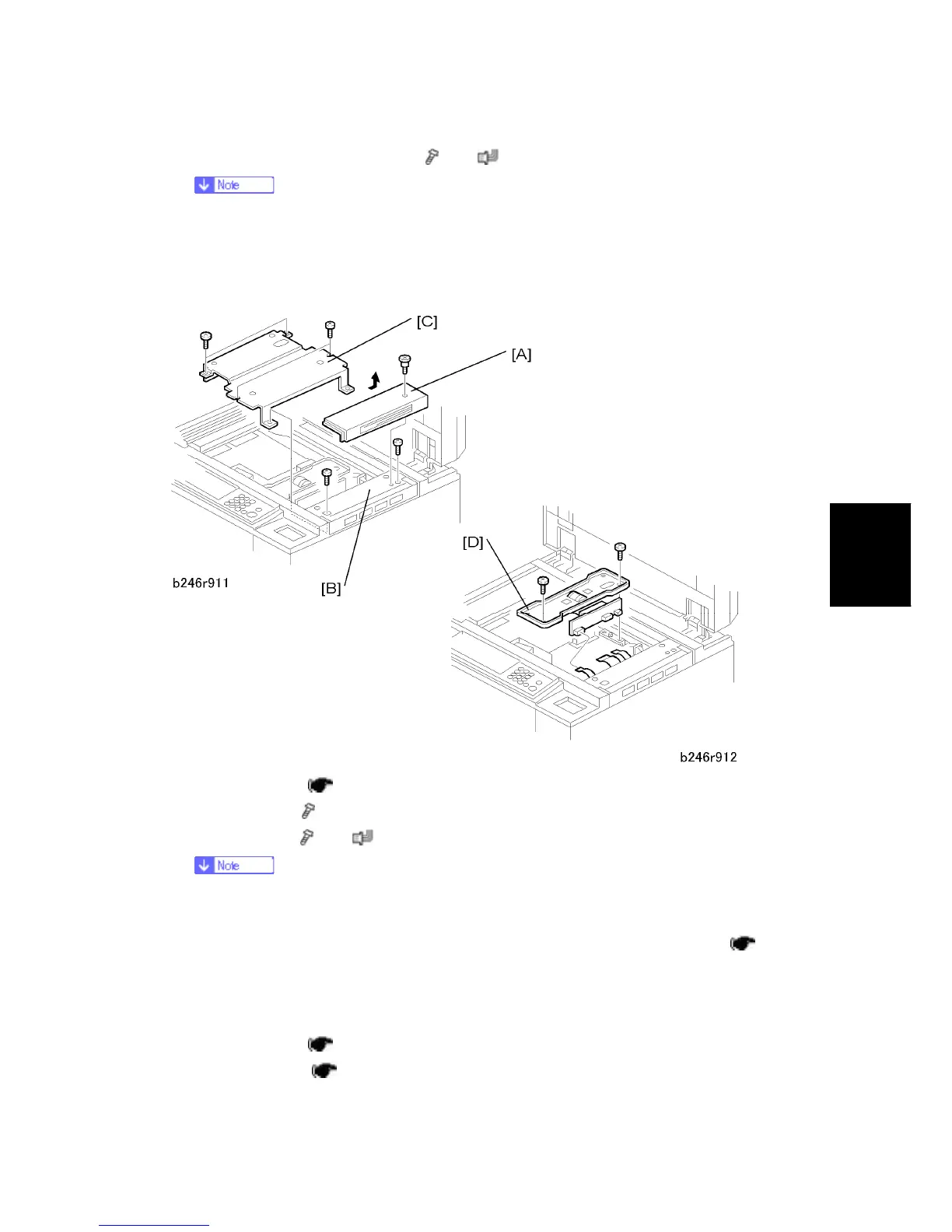

4.4.4 LENS BLOCK
1. Exposure glass (
p.4-11)
2. Lens cover [C] (
x 9)
3. Lens block [D] (
x 4, x 4)
 To avoid damaging the lens block, never set it down on the side with the PCB;
turn it over with the PCB up.
4. Re-assemble the machine, then perform the scanner and printer adjustments. (
p.4-133)
4.4.5 EXPOSURE LAMP
1. Exposure glass ( p.4-11)
2. Operation panel (
p.4-6)
3. Push the 1st scanner [B] to the cutout [A] in the scanner frame.
