Cover Interposer Tray (B704)
D062/D063/D065/D066 2-72 SM
2. Remove all tape and retainers from the cover interposer tray [A].
3. Remove the tape and cardboard [B] from the ground connector.

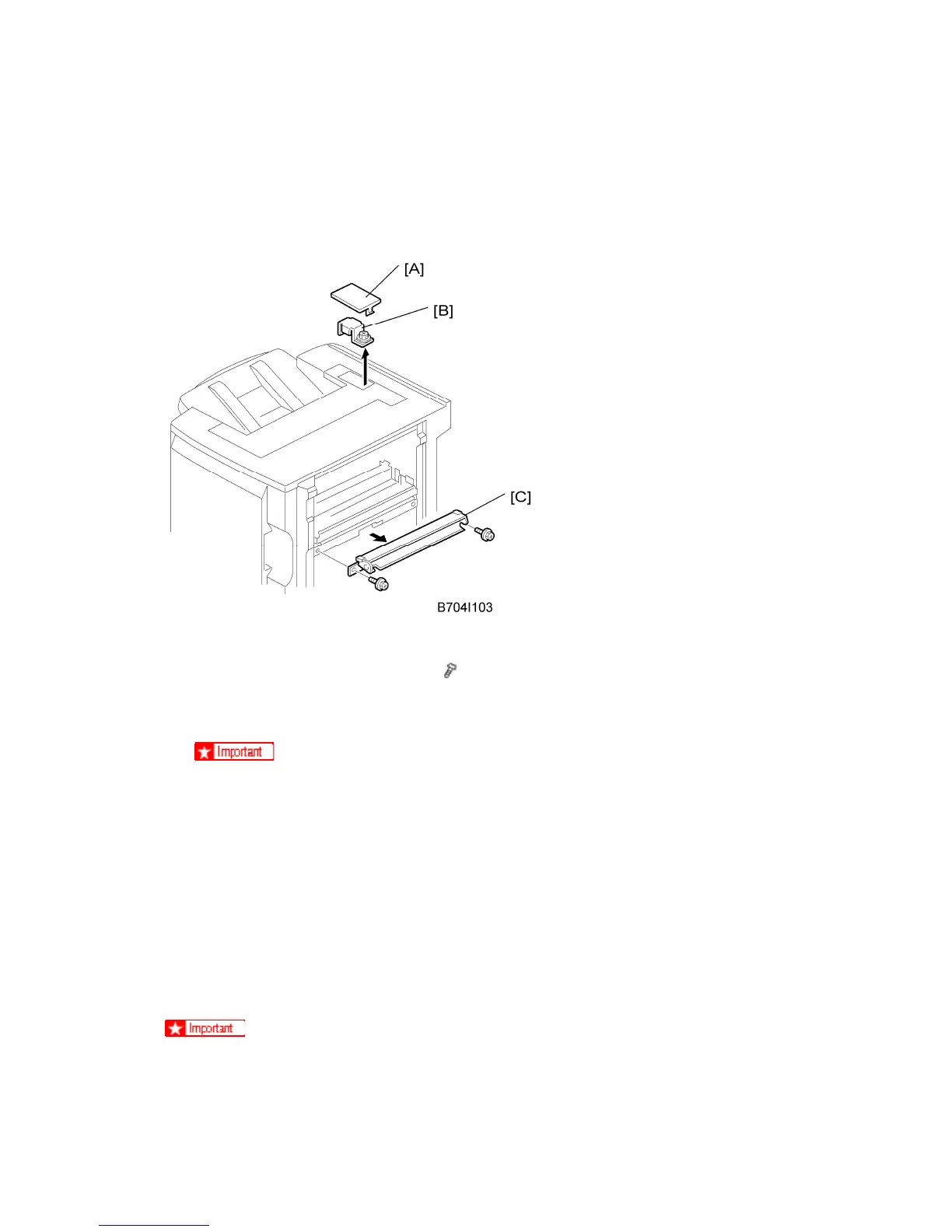

Preparing the Finisher (D373/D374/D460)
1. Remove the cover [A] of the relay connector.
2. Loosen the screw of the bracket [B] (
x 1) then remove the bracket.
3. Remove the guide plate [C]. (This guide plate will be attached to the cover interposer;
do not discard it.)
 If you are installing the cover interposer tray with a previously installed finisher
D373/D374/D460, remove the sponge strip from the finisher and save it for
re-attachment to the interposer tray.
4. Either:
 If you are installing the D373/D374, attach the extensions to the finisher without
modification. Go to "Attaching the Extensions for the D373/D374".
 If you are installing the D460, modify the extensions and attach them to the finisher.
Go to "Attaching the Extensions for the D460".
Attaching the Extensions for the D460
 The procedures in this section are for installation of the cover interposer with the
D460 only.
