2.16.3 INSTALLATION

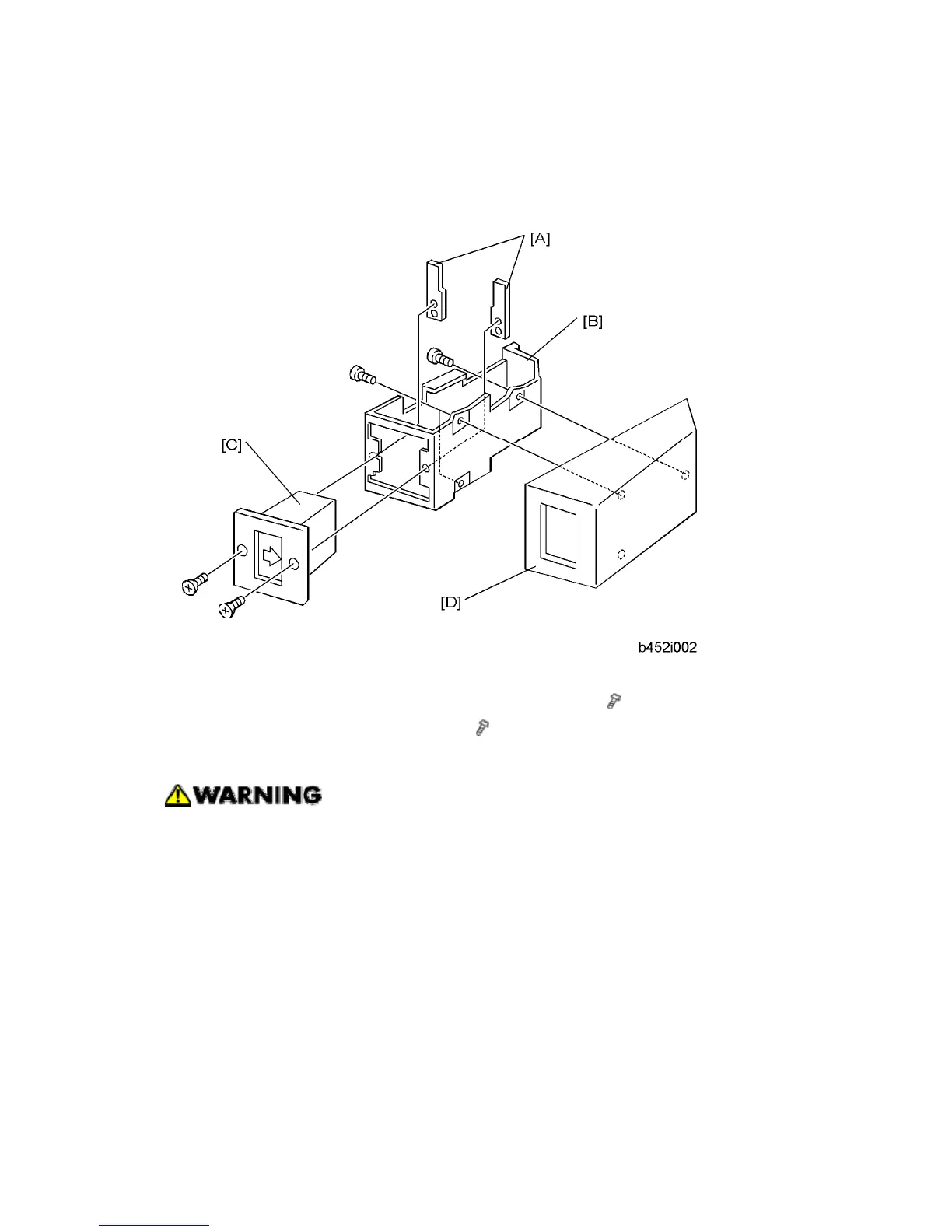

Assemble the Key Counter Bracket
1. Hold the key counter plate nuts [A] on the inner surface of the key counter bracket [B].
2. Attach the key counter holder [C] to the key counter bracket (
x2).
3. Attach the key counter bracket cover [D] (
x2).
Install the Key Card Bracket and Assembled Key Counter
 Always turn the machine off and disconnect the machine power cord before you
do this procedure.
