Ricoh D065 - ADF Skew Correction

Copy Image Adjustments: Printing/Scanning
SM 4-139 D062/D063/D065/D066
Replacement
and
Adjustment
ADF Skew Correction

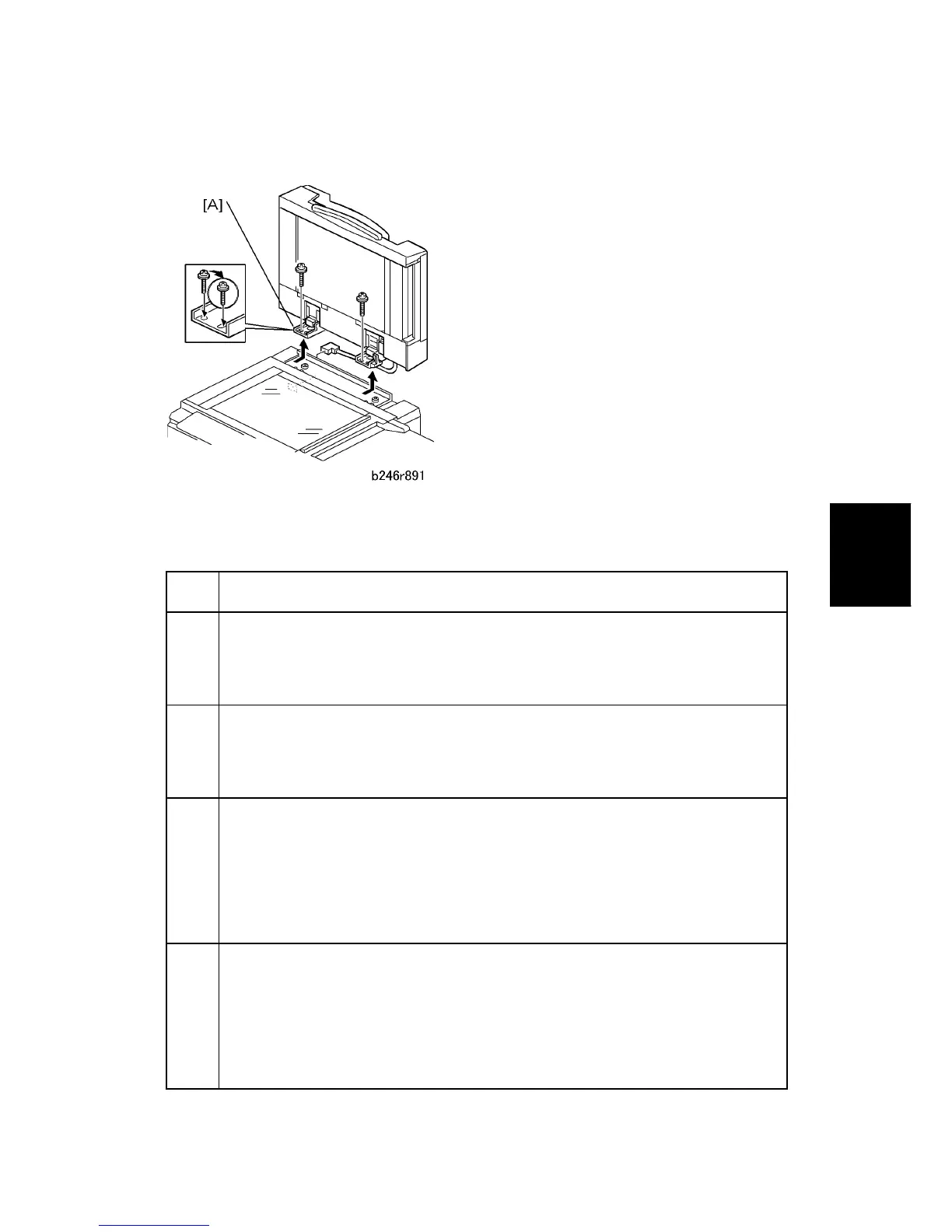

If the skew with A4 SEF paper is more than 0.5/200 mm in the main scan direction, you can
adjust the position of the ADF hinge [A] or adjust the appropriate SP codes below.
6006* ADF Registration Adjustment
001
ADF Horizontal Registration (Front)
Adjusts the side-to-side registration for the front in ADF mode.
[–3 to +3/0.1 mm]
002
ADF Horizontal Registration (Back)
Adjusts the side-to-side registration for the back in ADF mode.
[–3 to +3/0.1 mm]
003
ADF Vertical Registration (Front)
Adjusts the vertical registration for the front in ADF mode.
[–30 to +24/1 mm]
-30 = -5.1 mm
+24 = +4.1 mm
004
ADF Vertical Registration (Back)
Adjusts the vertical registration for the back in ADF mode.
[–30 to +30/1 mm]
-30 = -5.1 mm
+30 = +5.1 mm
