Ricoh D065 - Spring Adjustment; Stripper Pawls

Fusing Unit
SM 4-69 D062/D063/D065/D066
Replacement
and
Adjustment
3. Pressure roller cleaning unit [B] ( x 2)
4. Release the pressure arms [C]
5. Use screw driver to lower the pressure arms on both ends of the pressure roller.
6. Pressure roller springs [D]
7. Pressure roller [E]
 The fusing lamps are fragile. Work carefully to avoid breaking them.
 During assembly, handle the roller carefully to avoid scratching it on the
bracket.
 Make sure the tabs and grooves of the lower cover are engaged correctly
before tightening the screw.
Spring Adjustment
 Two holes [F] are provided on each pressure arm for the springs.
 Normally the springs should be attached to the lower holes.
 Attaching the springs to the upper holes exerts less pressure on the hot roller. Attach
the springs to the upper holes only for especially thin paper.
4.9.8 STRIPPER PAWLS
Remove:
 Fusing unit (
p.4-57)

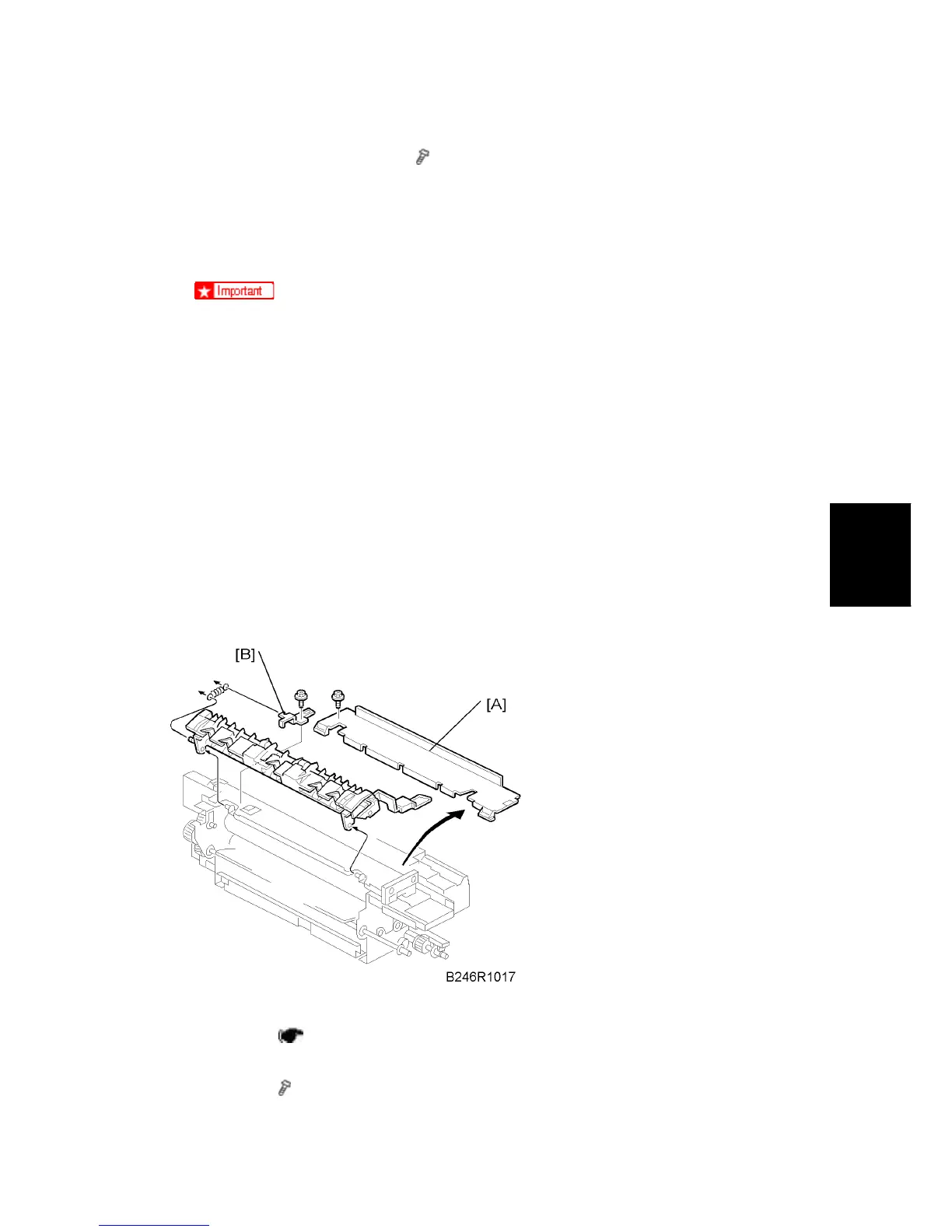

1. Top cover [A]
2. Bracket [B] (
x 1, spring x 1)
