Ricoh D065 - Upper Tray, End Fence

Covers
D373/D374 2 SM
1.1.2 UPPER TRAY, END FENCE
1. Remove the rear cover. (* "Exterior Covers")

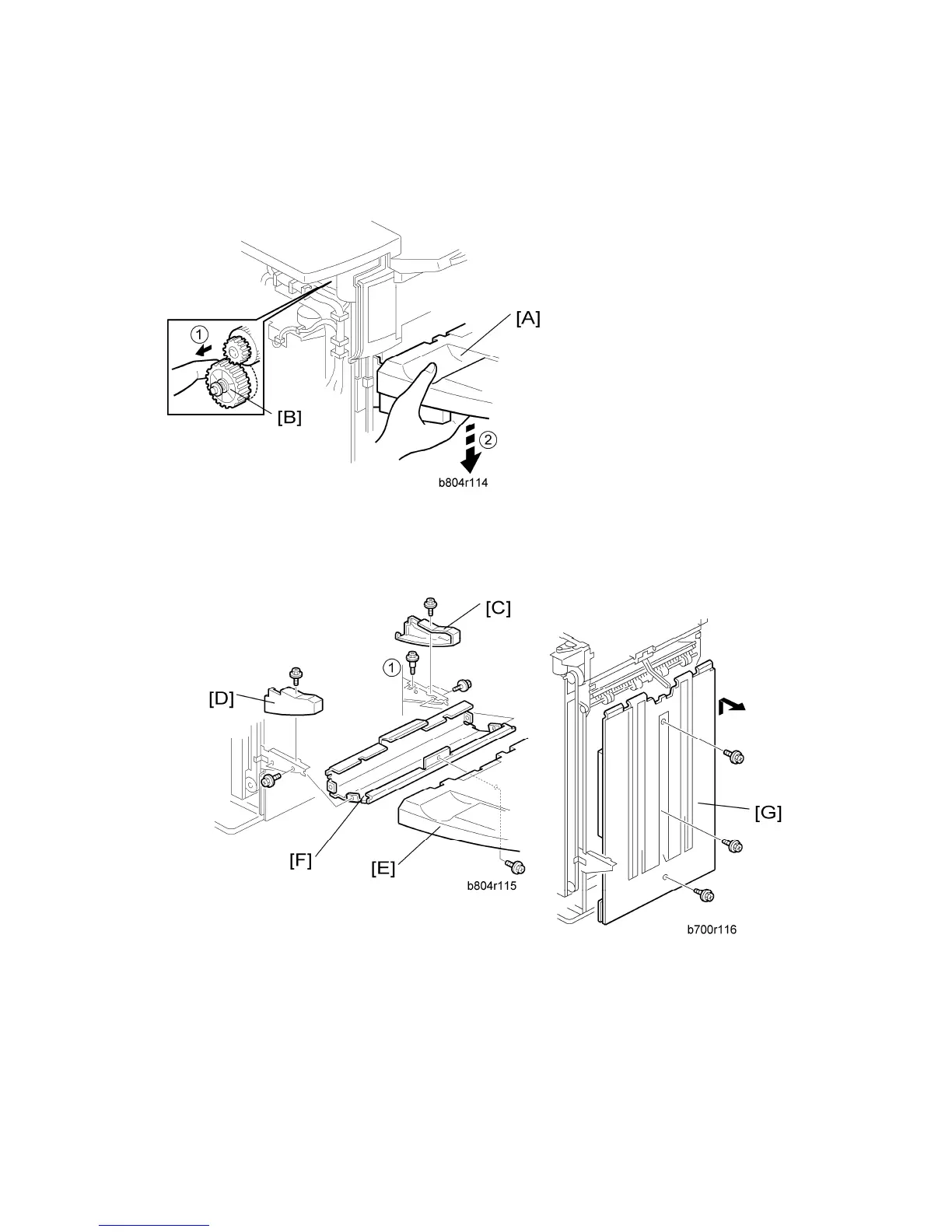

1. Support the tray [A] with your right hand.
2. Pull gear [B] toward you { to release.
3. Slowly lower the tray | until it stops.
4. Front side cover [C] ( x1)
5. Rear side cover [D] ( x1)
6. Upper tray [E] ( x1)
7. Tray bracket [F] ( x4,  x1 shoulder screw {)
8. End Fence [G]( x3)
