Ricoh D065 - Bypass Entrance Paper Sensor

Electrical Components: Main 2
SM 49 D454
Multi-Folding
Unit FD5000
D454
1.7 ELECTRICAL COMPONENTS: MAIN 2
1.7.1 BYPASS ENTRANCE PAPER SENSOR
1. Folding unit cover ( p.3)
2. Rear upper cover ( p.4)
3. Rear lower cover ( p.4)

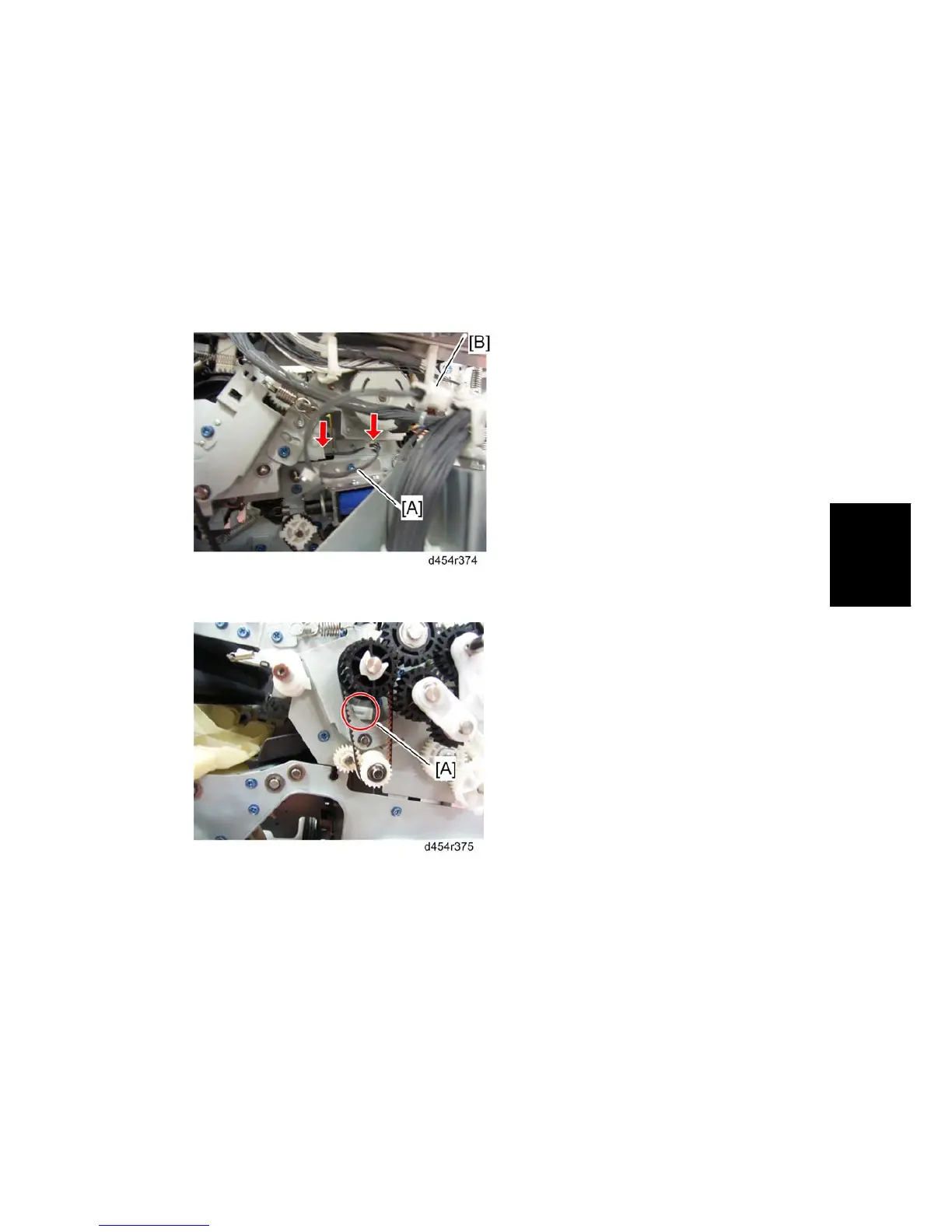

4. Disconnect the bypass entrance paper sensor harness [A] from the connector [B] (= x
2).
5. Remove the clip [A] for the bypass entrance guide plate.
