Replacement and
Adjustment
D454 50
SM
6.

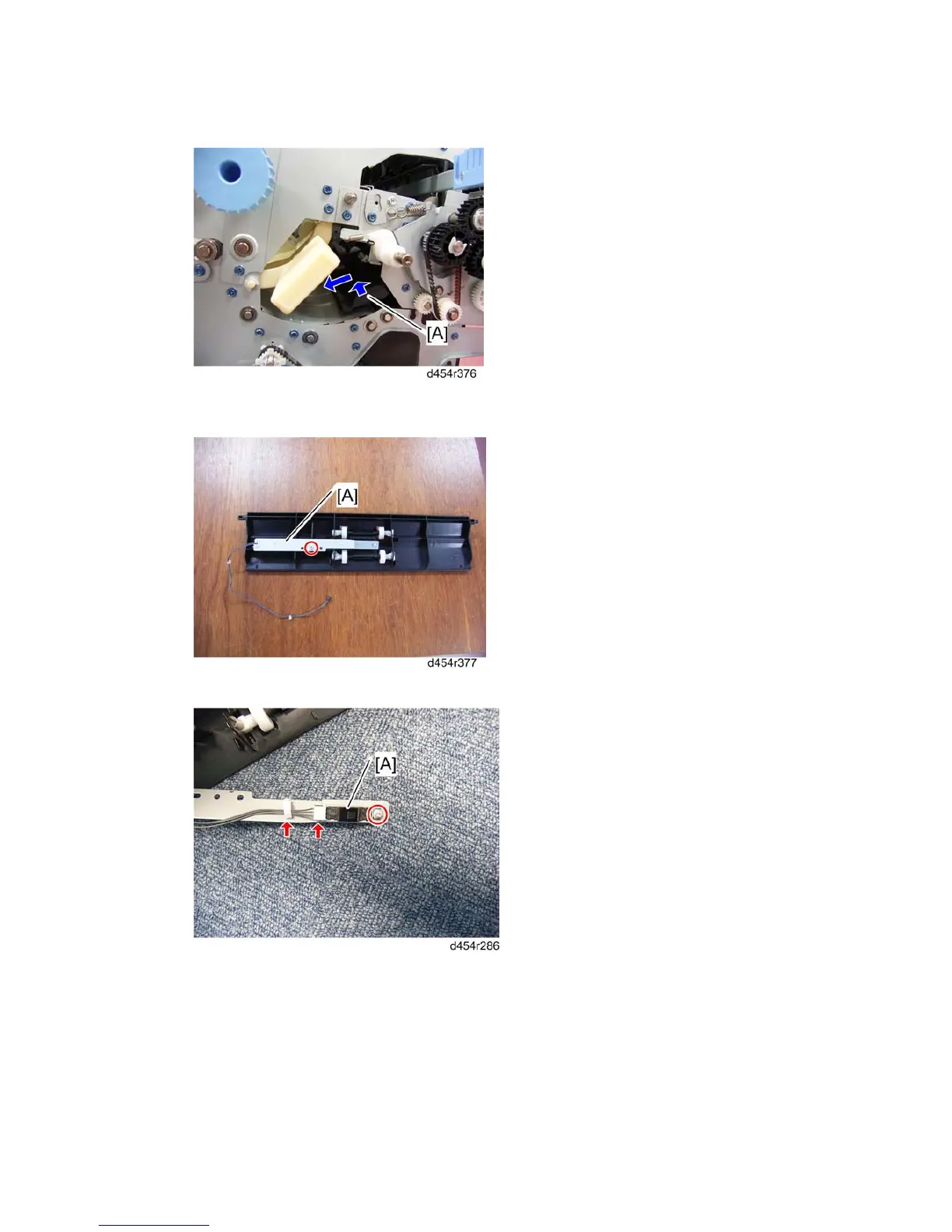

Push the bypass entrance guide plate [A] to t
he rear
, then slide it to the left, and remove
it.
7.
Bypass entrance p
aper sensor bracket [A] (
x 1)
8.
Bypass entrance p
aper sensor [A] (
=
x 1,
x 1,
x 1)
