1.2 ELECTRICAL COMPONENTS: REAR SIDE

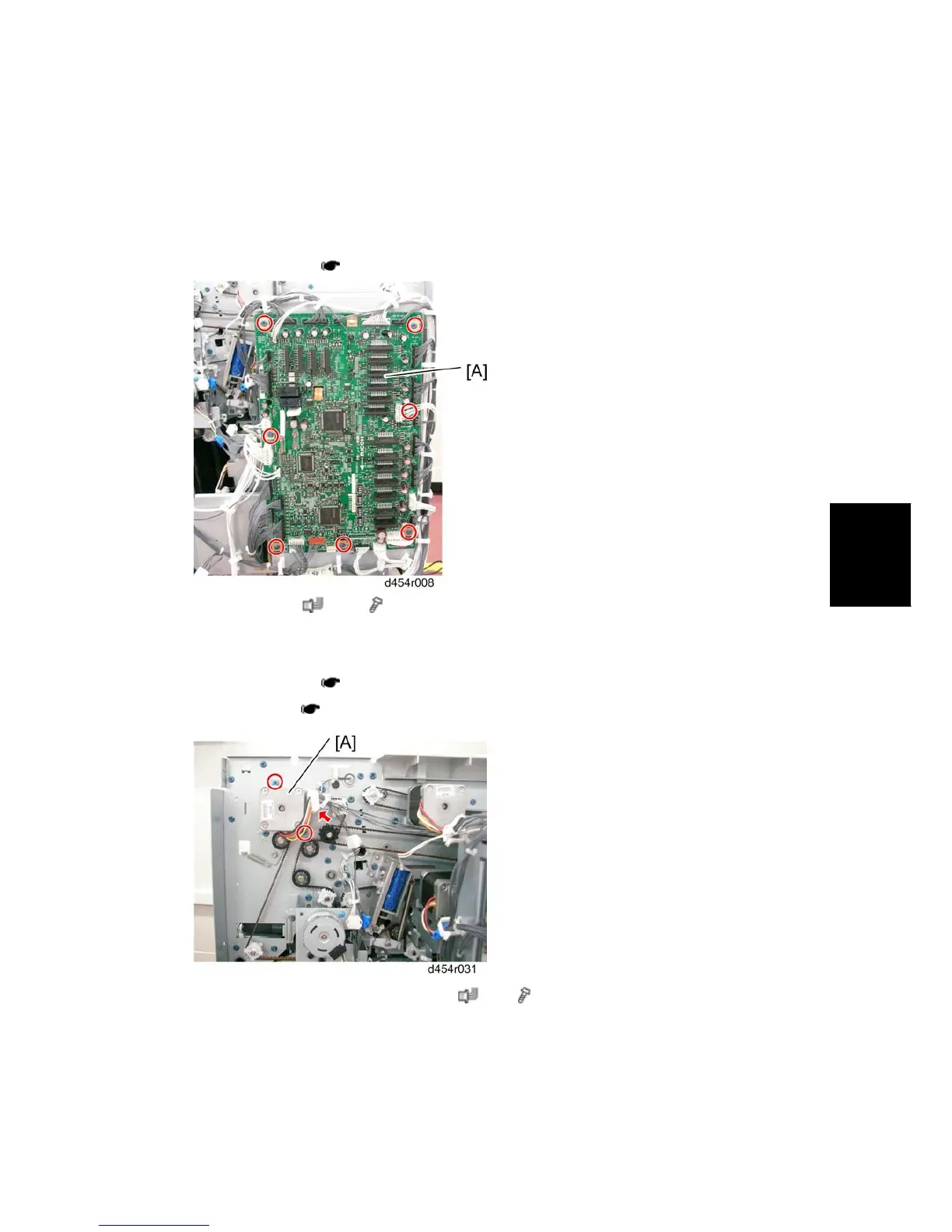

1.2.1 MAIN BOARD
1. Rear upper cover ( p.4)
2. Main board [A] (
x all, x 7)
1.2.2 HORIZONTAL TRANSPORT MOTOR
1. Rear upper cover ( p.4)
2. Top rear cover (
p.5)
3. Horizontal transport motor bracket [A] (
x 1, x 2)
