Electrical Components: Rear Side
SM 9 D454
Multi-Folding
Unit FD5000
D454

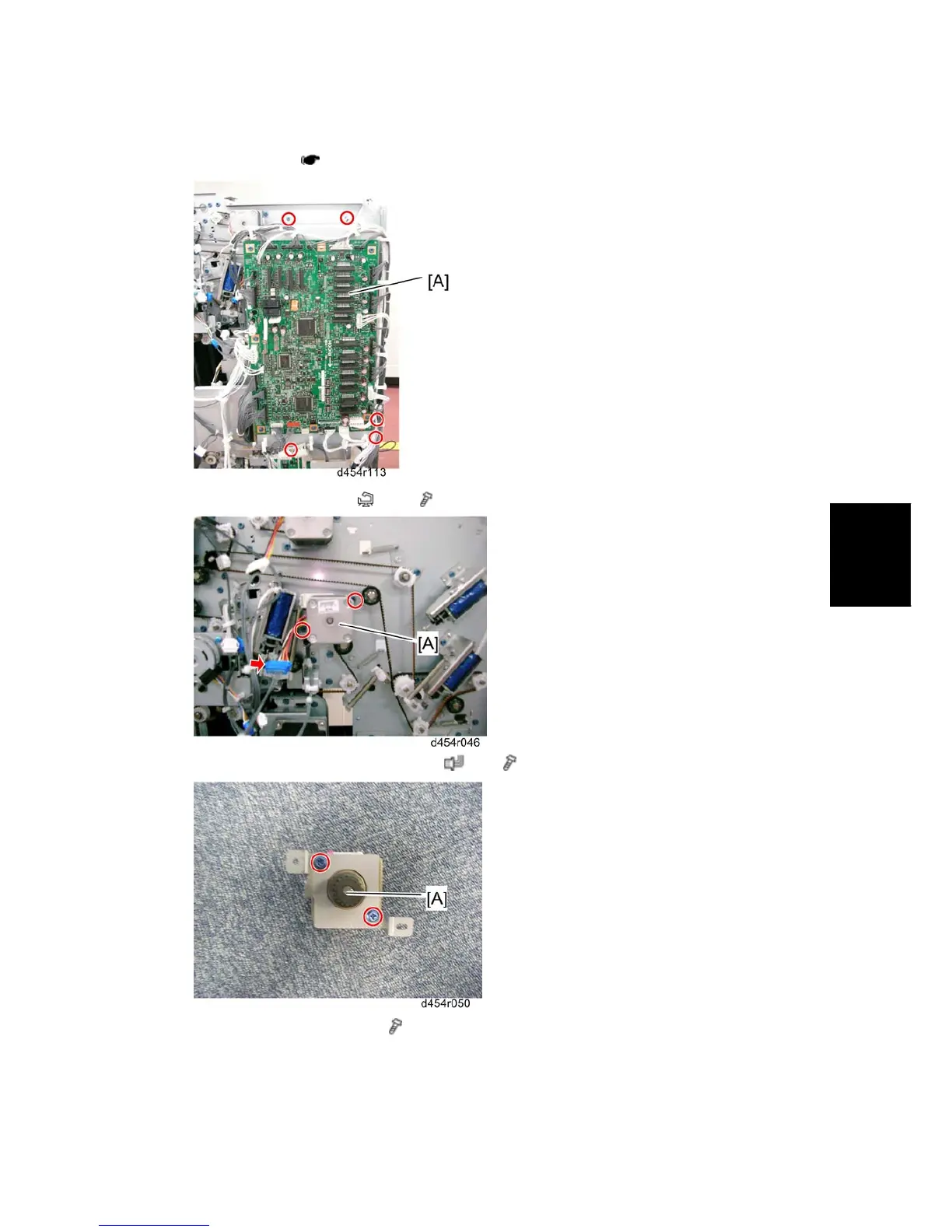

2. Top rear cover ( p.5)
3. Main board bracket [A] (
x all, x 5, ground cable x 1)
4. Top tray transport motor bracket [A] (
x 1, x 2)
5. Top tray transport motor [A] (
x 2)
